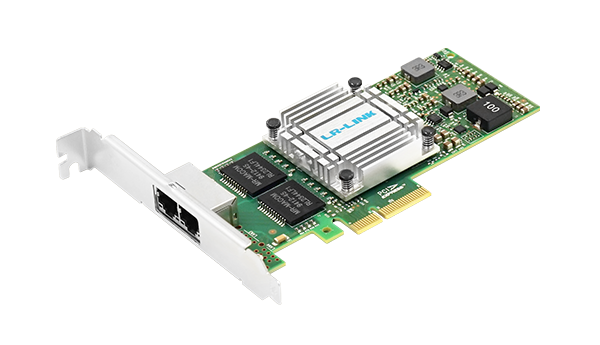

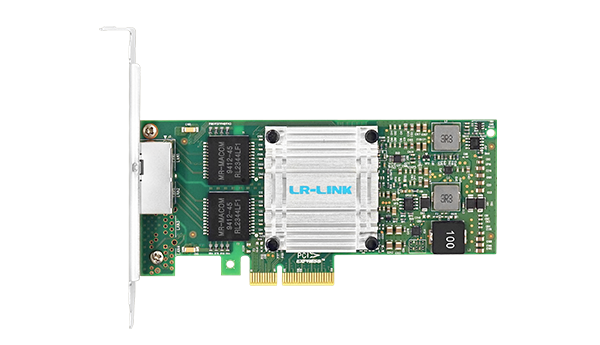

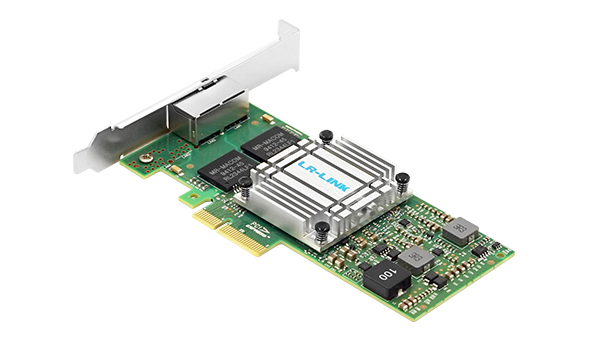

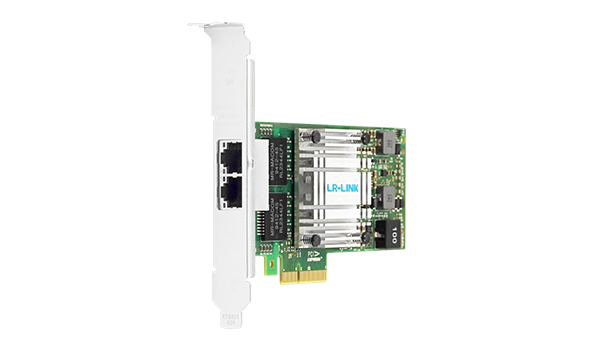

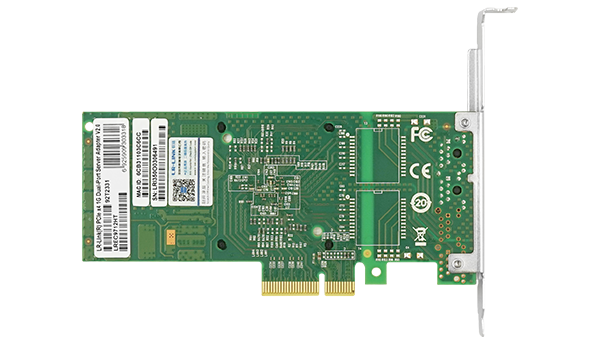

PCIe x4 Dual-port Gigabit Ethernet Network Adapter
LREC9712HT is a PCIe x4 dual-port Gigabit ethernet network adapter developed by Linkreal CO.,LTD. based on Intel I350 chip program, compatible with PCIe x8 and x16 channels. The adapter is designed for servers and server clusters and other network applications. It can realize fault tolerance and redundancy by bundling multiple ports into a group to expand network bandwidth and guarantee network performance, and it can automatically detect and realize real-time routing of communications from the faulty ports to other members of the same group for uninterrupted high-performance communications.
The LREC9712HT features integrated hardware acceleration to perform TCP/UDP/IP checksum offloading and TCP segmentation tasks. The host processing technology can offload the gas pedal. The host processing technology can offload the gas pedal, freeing up the CPU resource footprint to free up more CPU resources for other applications.
The LREC9712HT adopts a compact interface structure to better utilize server space, and allows two network ports to work simultaneously in full-duplex operation mode for high-performance network communication in a Gigabit Ethernet connection.
PCIe2.1 x4 Dual-port Gigabit Ethernet Network Adapter (Net-swift WX1860A2 Based): LRES2024PT
Complete technical details for integration and deployment planning.
| Bracket Height | Low Profile & Full Height |
|---|---|
| Max Power(w) | 4.0 W |
| Connector | 2 * 8-Pin RJ45 |
| Bus Type | PCIe v2.1 (2.5GT/s & 5.0GT/s) x4; x8, x16 compatible |
| Data rate per port | 10/100/1000Mbps |
| Power Supply | PCIe |
| Protocol Support | IEEE 802.3ab 1000BASE-T Gigabit EthernetIEEE 802.3u 100BASE-TX Fast EthernetIEEE 802.3zIEEE 1588IEEE 802.3adIEEE 802.3az - Energy Efficient Ethernet |
| PXE | No |
| DPDK | Yes |
| WoL | Yes |
| iSCSI | No |
| Jumbo Frames | Yes |
| FCoE | No |
| System Support | * Windows XP /7 /8 /8.1 /10* Windows Server 2003 / R2* Windows Server 2008 / R2* Windows Server 2012 / R2* Windows Server 2016 / R2* Windows Server 2019 / R2* RHEL/CentOS 6.x / 7.x or later* Ubuntu 14.x / 16.x or later* FreeBSD 9 / 10 / 11 or later* Linux Stable Kernel version 2.6.x/3.x / 4.xor later* Vmware ESX/ESXi 4.x / 5.xor later |
| 1000Mbps | ACT |
| LINK | Orange Link |
| 100Mbps | ACT |
| LINK | Green Link |
| 10Mbps | ACT |
| LINK | / |
| Operating Temperature | 0℃ to 55℃ (32 ℉ to 131 ℉) |
| Storage Temperature | -40 ℃ to 70 ℃ (-40℉ to 158 ℉) |
| Storage Humidity | Maximum: 90% non-condensing relative humidity at 35 ℃ |
| Certification | FCC，CE，RoHS |
