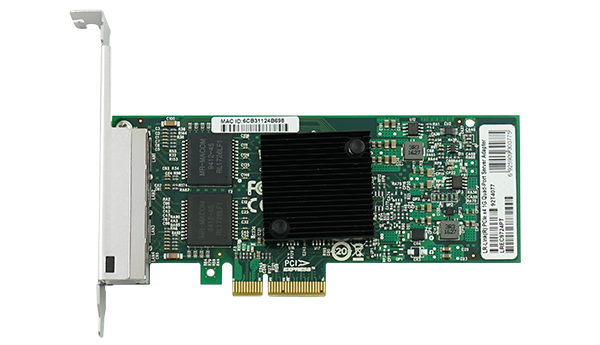

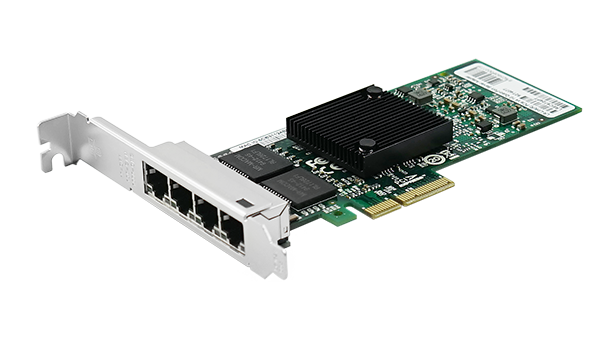

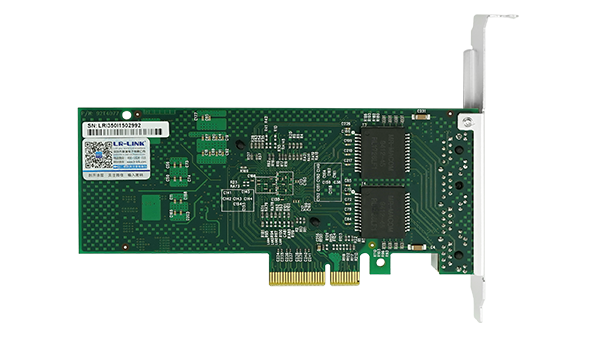

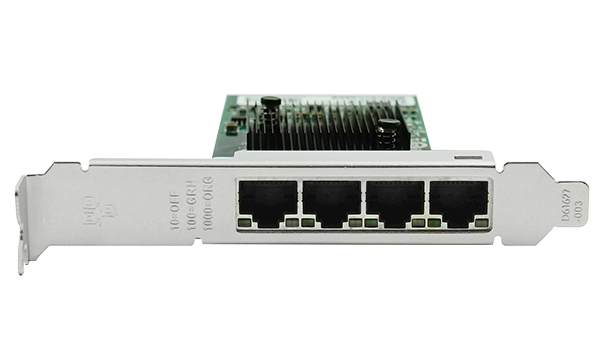

PCIe x4 Quad-port Copper Gigabit Server Network Adapter (Intel I350)
LREC9724PT is a PCIe x4 1Gbps Quad-Port Copper Sever Ethernet Adapter based on Intel I350 chipset, compatible with PCIe x8 and x16 slot. The adapter is mainly used on servers and its performance has been optimized while being designed, which makes system I/O no longer be the bottleneck on the application of high-end network. The adapter can be grouped up together through its four ports to expand network bandwidth and ensure network performance. It can also real-time detect automatically and combine the communication route from the faulty port with others to achieve high-performance communications incessantly.
LR-LINK PCIe x4 Quad-port Gigabit Copper Ethernet Network Adapter: LRES2025PT
Complete technical details for integration and deployment planning.
| Baffle Configuration | Full height & half height |
|---|---|
| Power Consumption | 5.0W |
| System Support | Windows XP/Vista/7/8/8.1/10/11 |
| Bus Type | PCIe v2.1 x4 , compatible with x8 , x16 |
|---|---|
| Data Rate | 10/100/1000Mbps |
| Connector | 4*1G RJ45 |
| Standards Compliant | IEEE 802.3ab 1000BASE-T Gigabit EthernetIEEE 802.3u 100BASE-TX Fast EthernetIEEE 802.3zIEEE 802.1Q VLANsIEEE 802.3xIEEE 1588IEEE 802.3az - Energy Efficient Ethernet (EEE) |
| PXE | Yes |
| iSCSI | No |
| FCoE | No |
| DPDK | Yes |
| WoL | No |
| Jumbo frame | Yes |
| PCI-SIG* SR-IOV | Yes |
| VMDq | Yes |
| Operating Temperature | 0 ℃ to 55 ℃ (32 ℉ to 131 ℉) |
| Storage Temperature | -40 ℃ to 85 ℃ (-40 ℉ to 185 ℉) |
| Storage Humidity | Maximum: 90% non-condensing relative humidity at 35 ℃ |
| PCB Size(mm) | **1.6 |
| Weight(g) | * |
| Status indication | 1000Mbps, Orange bright + Green flashing |
