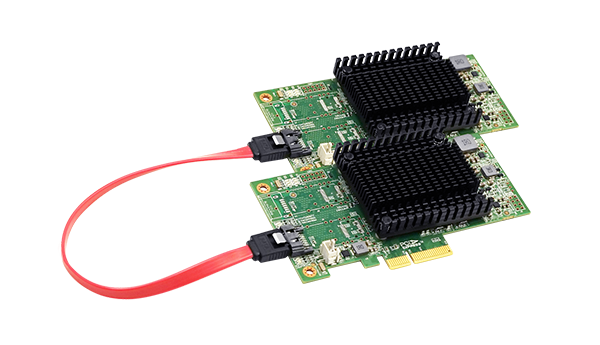

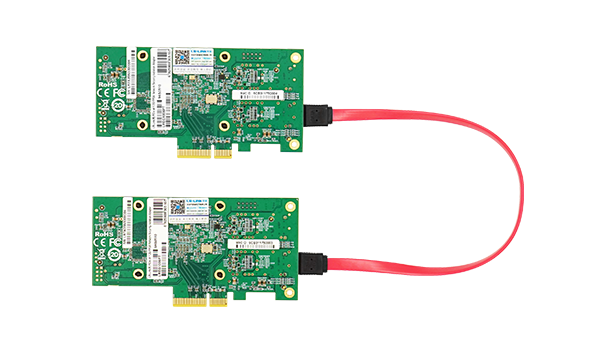

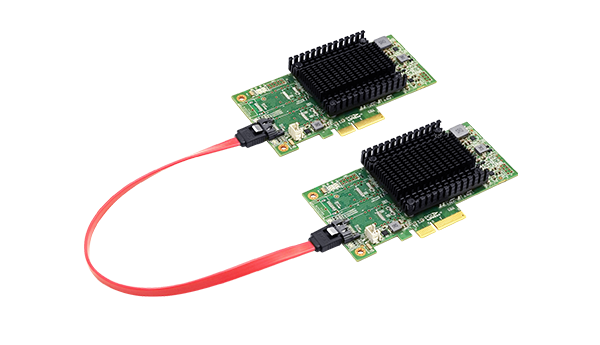

1.2G FPGA Network Security Isolation Adapter (XILINX )
LREG1006PT is a 1.2G FPGA network security isolation adapter developed by Linkreal Co., Ltd. based on the XILINX . It is PCIe 2.0 x4 and can be used for PCIe x8 and PCIe x16 slots. It achieves a single-port, bi-directional transmission rate of 2.4Gbps throughput.
Linkreal Co., Ltd. launched the SATA interface 1.2G FPGA network security isolation adapter (LREG1006PT) with independent intellectual property rights, which has independent sending and receiving control ability. It can be configured as unidirectional TX, unidirectional RX, bidirectional TX&RX through configuration commands, meeting the requirements of unidirectional gateways and bidirectional gateways.
LREG1006PT adopts XILINX FPGA chip, and its logic function and driver are independently developed by LR-LINK, with complete intellectual property rights. The isolation adapter has excellent performance, reaching the highest level in the industry in terms of average transmission delay and actual packet transmission rate. It has passed authoritative tests and applications on platforms such as X86 and Phytium, and has shown excellent performance overall.
Complete technical details for integration and deployment planning.
| PCIe Bus interface | PCIe x4, compatible with x8 & x16, the rate is PCIe v2.0 (5.0GT/s) x1 |
|---|---|
| Data rate per port | 1.2Gbps |
| Connector | 1*SATA connector |
| Power supply | PCIe (12V) |
| Jumbo frame (Max) | 1518 Byte |
| Operating Temperature | 0℃ to 70℃ (32 ℉ to 158 ℉) |
| Storage Temperature | -55 ℃ to 105 ℃ (-67 ℉ to 221 ℉) |
| Storage Humidity | Maximum: 90% non-condensing relative humidity at 35 ℃ |
| Certification | FCC, CE, RoHS |
| PCB Size (L x W x H) | 129.2 x 68.94 x 1.6 mm |
| Package Size (L x W x H) | 222*147*28 mm |
| Weight (g) | * |
| 1.2Gbps | LINK |
| ACT | Green Blink |
| P/N | Description |
| LREG1006PT | 1.2G FPGA Network Security Isolation Adapter (XILINX Based) |
