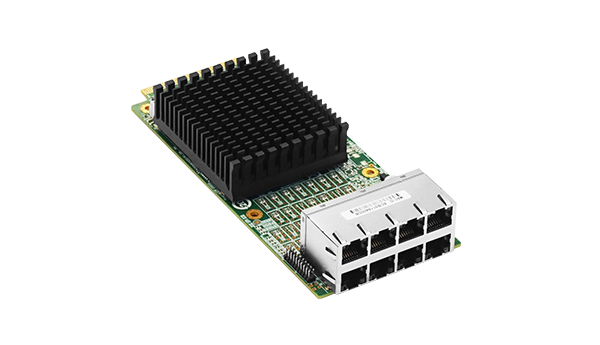

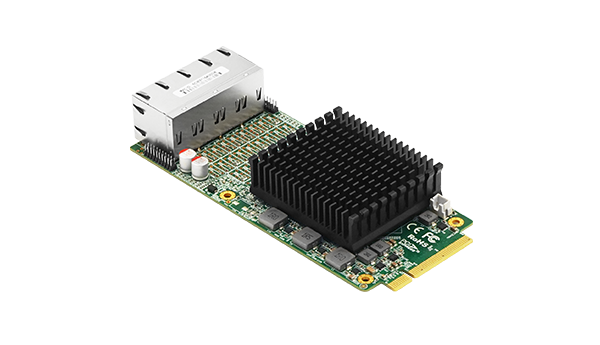

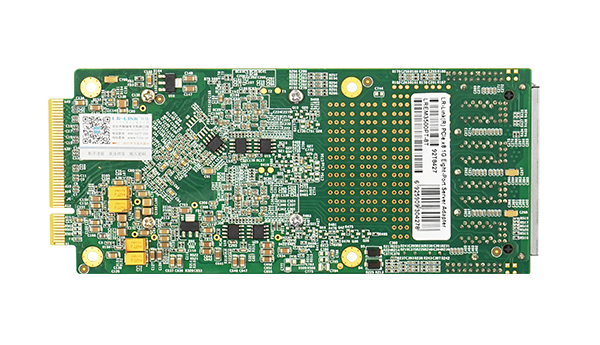

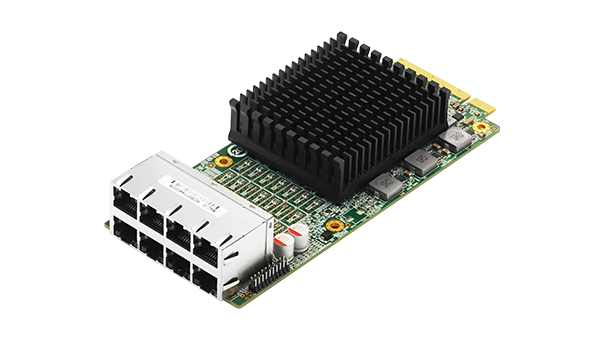

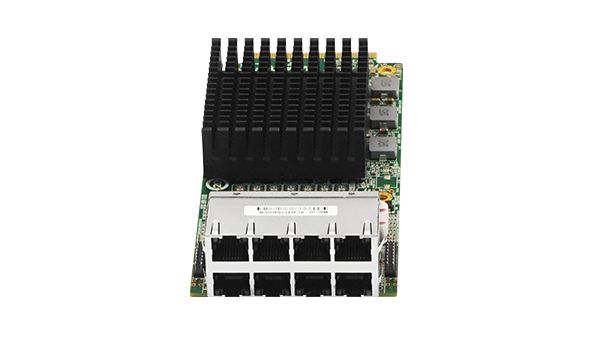

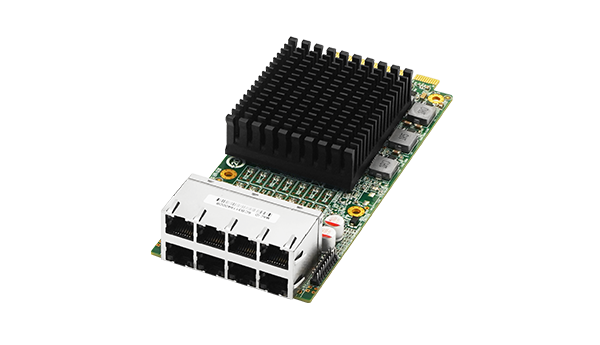

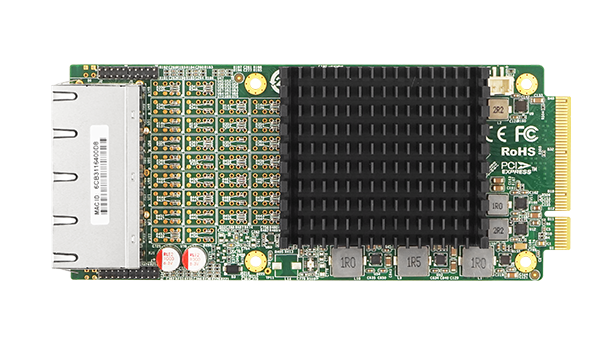

PCIe x8 Eight-port Mezzanine 1G Ethernet Network Adapter (Intel I350 Based)
LREM3500PT-8T is a PCI Express x4 (x8 interface) 8-port mezzanine Gigabit Ethernet network adapter developed by Shenzhen Lianrui Electronics Co., Ltd. based on the Intel I350 main control program. It is suitable for non-stop operation of all-weather data transmission.
The Intel I350 main control chip is adopted, which has a wide range of system compatibility and stability. Each network port has an independent Gigabit channel network port and works independently of each other.
Support 10/100 / 1000Mbps link rate work at the application site. In the Gigabit Ethernet connection, eight network ports can be allowed to work in full-duplex mode at the same time, and eight network ports can be aggregated to increase network traffic bandwidth or any network port can be used for aggregation. Can save PCI Express channel resources in the space of 1U chassis.
Complete technical details for integration and deployment planning.
| Power Consumption（max） | 15.1W |
|---|---|
| Connector | 8*RJ45 |
| Data rate supported per port | 10/100/1000Mbps |
| Power supply | PCIe |
| System Support | Windows XP/Vista7/8/8.1/10 |
| Protocol Support | IEEE 802.3ab 1000BASE-T Gigabit EthernetIEEE 802.3u 100BASE-TX Fast Ethernet IEEE 802.1Q VLANsIEEE 802.3x IEEE 1588IEEE 802.3az - Energy Efficient Ethernet (EEE) |
|---|---|
| PXE | No |
| DPDK | Yes |
| WOL | No |
| iSCSI | No |
| Jumbo Frames | Yes |
| FCoE | No |
| LED Indicators | 1000Mbps,Green+orange |
| Operating Temperature | 0 ℃ to 55 ℃(32 ℉ to 131 ℉) |
|---|---|
| Storage Temperature | -40 ℃ to 85 ℃ (-40 ℉ to 185 ℉) |
| Storage Humidity | Maximum: 90% non-condensing relative humidity at 35 ℃ |
| authentication | FCC,RoHS,CE |
