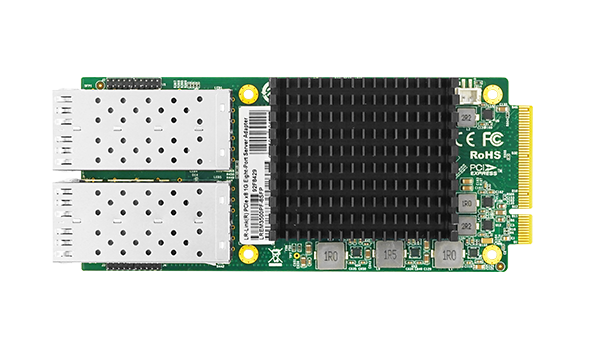

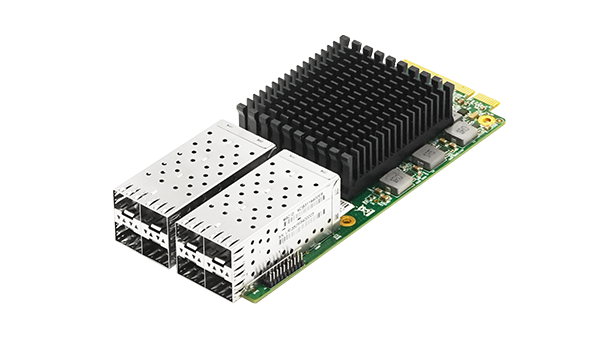

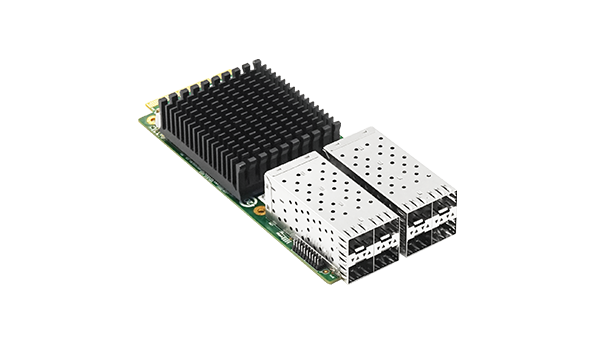

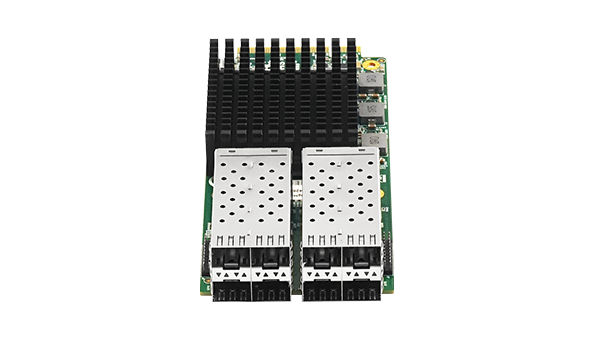

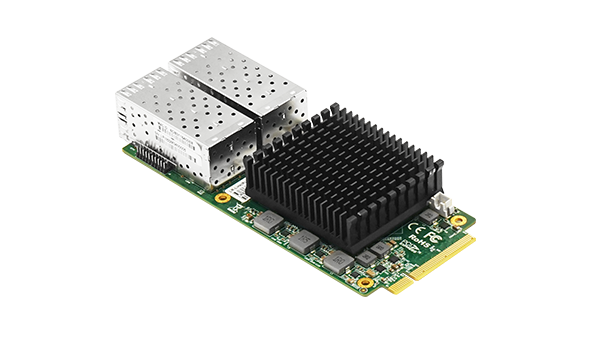

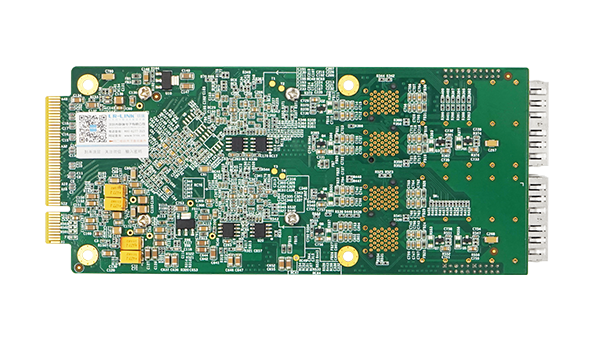

PCIe x8 Eight-ports 1G SFP Mezzanine Ethernet Network Adapter(Intel I350 Based)
LREM3500PF-8SFP is a PCI Express x8 eight-port fiber mezzanine Gigabit Ethernet network adapter developed by Shenzhen Lianrui Electronics Co., Ltd. based on the Intel I350 main control solution. It is used in firewalls, gatekeepers, data monitoring and other data. In terms of transmission, it adapts to non-stop operation around the clock.
The Intel main control chip is adopted, which has a wide range of system compatibility and
stability. Each network port has an independent Gigabit channel network port and works
independently from each other.
Support 1000M speed transmission at the application site. In the Gigabit Ethernet connection,
eight Gigabit ports can be allowed to work in full-duplex working mode at the same time, and
multiple network ports can be aggregated to increase network traffic bandwidth or any network port can be aggregated. Can save PCI Express channel resources in the space of 1U chassis.
Complete technical details for integration and deployment planning.
| Protocol Support | IEEE 802.3z 1000BASE-X Gbit/s Ethernet IEEE 802.1Q VLANsIEEE 802.3x IEEE 1588IEEE 802.3az - Energy Efficient Ethernet (EEE) |
|---|---|
| PXE | No |
| DPDK | Yes |
| WOL | No |
| iSCSI | No |
| Jumbo Frames | Yes |
| FCoE | No |
| Operating Temperature | 0 ℃ to 55 ℃(32 ℉ to 131 ℉) |
| Storage Temperature | -40 ℃ to 85 ℃ (-40 ℉ to 185 ℉) |
| Storage Humidity | Maximum: 90% non-condensing relative humidity at 35 ℃ |
| authentication | FCC, RoHS, CE |
