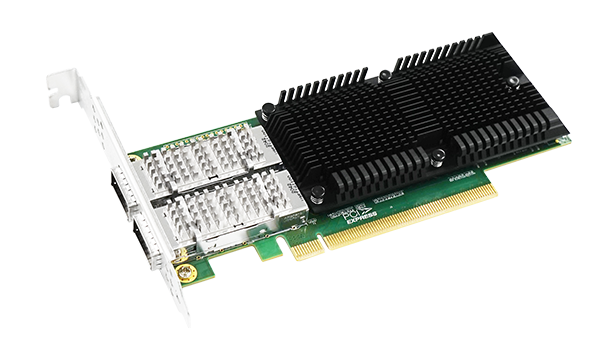

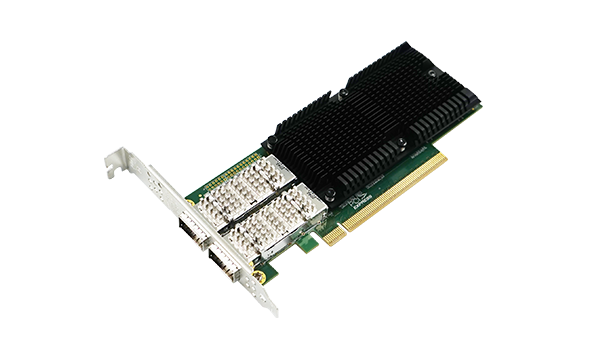

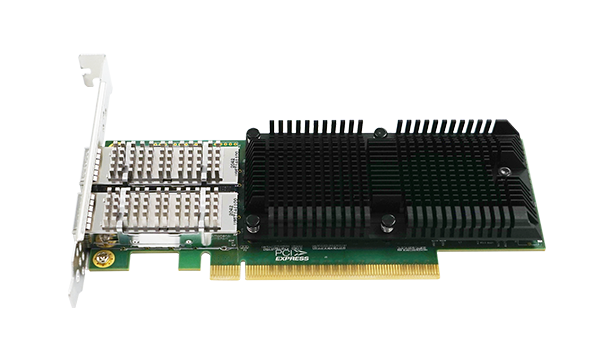

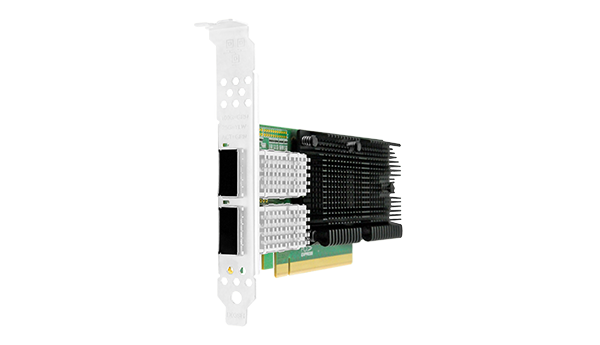

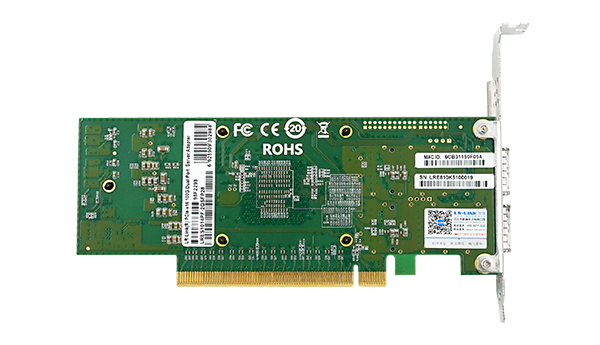

PCIe 4.0 x16 | Intel E810 | 100G | QSFP28 | Dual-port
LRES1014PF-2QSFP28 is a PCIe4.0 x16 dual-optical port 100G Ethernet network adapter developed by Linkreal CO.,LTD. on the basis of Intel E810 master program. The product is complemented by hardware accelerated packet processing expansion features, while the introduction of application queuing technology, through which Fabric TCP can be realized through the NVMe support, but also on the RDMA iWARP and RoCEv2 functions with optional support, the adapter can be simultaneously backward compatible with PCIe3.0 and PCIe2.0.
LRES1014PF-2QSFP28 adopts the application queue technology to ensure that each application can request its own queue, i.e., the data between each other is no longer confused, with an interface speed of up to 100Gbps, which can be widely used in high throughput can handle a variety of workloads, data center services, cloud computing, storage, and other network equipment, in the actual operation of the use of program queues can reduce the number of applications. In practice, it can be used in combination with program queues to reduce application latency and increase throughput.
The LRES1014PF-2QSFP28 provides scalable ADQ technology to improve performance scalability and predictability for critical workloads by dedicating specific resources to critical workloads. ADQ uses optimized application thread-to-device data paths to enable application-specific data control, messaging, and rate-limiting features.
Complete technical details for integration and deployment planning.
| Controller | Intel E810 |
|---|---|
| Cable medium | Fiber Optics |
| Cable Type | 10GBASE-SR, 10GBASE-LR, 10GBASE-ER,25GBASE-SR, 25GBASE-LR,50GBASE-SR, 50GBASE-LR,100GBASE-SR4, 100GBASE-LR4, 100GBASE-ER4 |
| Bracket Height | Low Profile & Full Height |
| Power (min) | 11.592 W |
| Power (max) | 39.372W |
| System Support | Windows 10 /11, Windows Server 2016 /2019 /2022Deepin 20 /20.6 /20.9VMware ESXi 6.7 /7.0Galaxy Unicorn v10RHEL/Centos 7.6 /7.9 /8.2 /8.3Ubuntu 16.04.3 /18.04.5 , Ubuntu 20.04.1 /22.04.2SUSE 12.5 /15.4FreeBSD 12.2 /13.2ZTE New Fulcrum 3.2.2, ZTE New Fulcrum 5.0.5Asianux Server v7.0Zhongke Fangde server operating systemiKuai router |
| Bus Interface | PCIe4.0 x16, compatible with PCIe3.0 |
| Data rate per port | 10/25/50/100Gbps |
| Connector | 2*100G QSFP28 |
| Power Supply | PCIe |
| Protocol Support | IEEE 802.3ae 10GBase-XIEEE 802.3z 1000BASE-X Gbit/s EthernetIEEE 802.3x Full Duplex and flow controlIEEE 802.3az Energy Efficient Ethernet (EEE) IEEE 802.3ap IEEE 802.3as IEEE 802.3bc IEEE 802.3bd IEEE 802.1p IEEE 802.1Q VLAN IEEE 802.1Qau IEEE 802.1Qaz IEEE 802.1Qbb IEEE 802.1Qbg IEEE 802.1Qbh IEEE 802.1X IEEE 802.1AX IEEE 802.1AEbn IEEE 802.1AS IEEE 802.3aq IEEE 802.3an |
| PXE\UEFI | Yes |
| DPDK | Yes |
| WoL | No |
| Jumbo Frames | Yes |
| VMDq、SR-IOV | Yes |
| Jumbo Frame(max) | 9.5KB |
| RDMA | Yes |
| 1588 PTP | Yes |
| Operating Temperature | 0℃ to 60℃ (32 ℉ to 140 ℉) |
| Storage Temperature | -40 ℃ to 70 ℃ (-40 ℉ to 158 ℉) |
| Storage Humidity | Maximum: 90% non-condensing relative humidity at 35 ℃ |
| Certification | FCC, CE, RoHS |
| PCB Size(L x W x H) | 68.76 x 170 x 1.6 mm |
| Package Size(L x W x H) | 250 x 170 x 32 mm |
| 10G /25G /50G | Connection Status |
| Transfer status | Orange Link + Green Blink |
| 100G | Connection Status |
| Transfer status | Green Link + Green Blink |
| P/N | Description |
| LRES1014PF-2QSFP28 | PCIe x16 Dual-port 100G QSFP28 Internet Network Adapter (Intel E810) |
