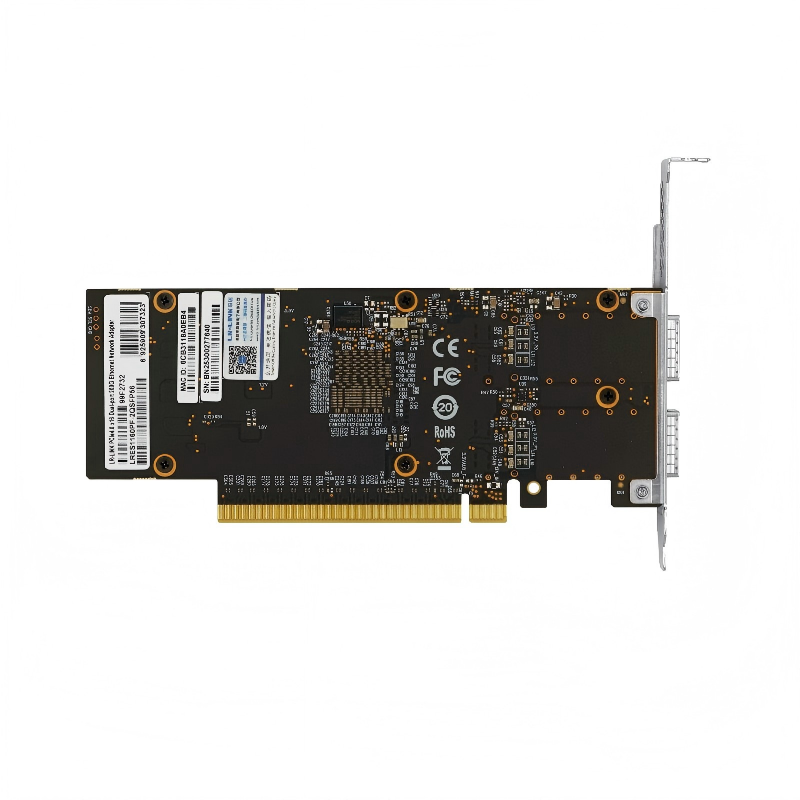

PCIe x16 Dual-port 200G Ethernet Network Adapter
LRES1160PF-2QSFP56 is a PCIex16 dual-port 200G QSFP56 Ethernet network adapter. Its master control technology and high-bandwidth PCIex16 interface ensure excellent data processing speed under high-load environments, providing users with reliable and efficient network connections. The network card supports data transmission rates up to 200G, providing excellent bandwidth performance for modern high-demand network applications; supports RDMA (RoCEv2), which greatly reduces the CPU load and improves the overall performance and throughput of the system; supports GPU Direct, so that data can interact directly with the GPU without CPU participation, and has an unparalleled performance experience in high-load GPU scenarios such as AI/ ML; In addition, LRES1160PF-2QSFP56 also supports virtualized network protocols such as VXLAN, Geneve, and NVGRE, enabling it to better handle network traffic and achieve flexible network isolation and management when building virtualized environments and cloud computing platforms.
Overall, the LRES1160PF-2QSFP56 network card has excellent hardware performance, network connection speed, and multi-function support, and is a leading product in the field of network communications. It is suitable for various application scenarios such as AI/ ML, data centers, and high-performance computing.
Complete technical details for integration and deployment planning.
| Min Power(w) | 16.17 |
|---|---|
| Max Power(w) | 29.52 |
| Power Supply | PCIe |
| Protocol Support | IEEE 802.3cd, 50, 100 and 200 Gigabit Ethernet IEEE 802.3bj, 802.3bm 100 Gigabit EthernetIEEE 802.3by, Ethernet Technology Consortium 25, 50 Gigabit Ethernet IEEE 802.3ba 40 Gigabit EthernetIEEE 802.3ae 10 Gigabit EthernetIEEE 802.3az Energy Efficient EthernetIEEE 802.3ap based auto-negotiation and KR startup IEEE 802.3ad, 802.1AX Link AggregationIEEE 802.1Q, 802.1P VLAN tags and priorityIEEE 802.1Qau (QCN) Congestion Notification IEEE 802.1Qaz (ETS)IEEE 802.1Qbb (PFC)IEEE 802.1Qbg |
| PXE | Yes |
| UEFI | Yes |
| 1588 PTP | Yes |
| SR-IOV | Yes |
| RDMA | RoCEv2 |
| Network Virtualization | VXLAN/ NVGRE |
| ESD_Contact discharge | ±8KV |
| Jumbo Frames | 9.9KB |
| System Support | * Windows 10 / 11* Windows Server 2016/2019/2022* Deepin 15.11 /20 /20.6 /20.9* VMware ESXi 6.7* RHEL/CentOS 7.6 /7.9 /8.2 /8.3* Ubuntu 16.04.3 / 18.04.5* Ubuntu 20.04.3 /22.04.2/24.04.3* SUSE 15.4* Galaxy Kirin v10 SP1* NeoKirin 7.6* OpenKirin 2.0 |
| 200/ 100/40Gbps | Connection Status |
| Transfer status | Green Blink |
| Operating Temperature | -10°C to 60°C |
| Storage Temperature | -40 °C to 70 °C |
| Storage Humidity | Maximum: 90% non-condensing relative humidity at 35 °C |
| Certification | FCC ，CE ，RoHS |
| PCB Size(Unit:mm) | 68.64* 167.5* 1.6 |
| Package Size (Unit: mm) | 222*147*28 |
| Bracket | Full Height(installed) and Low Profile |
| Internet Network Adapter | *1 |
| Product Warranty Card | *1 |
| Packaging | Carton + Blister Box |
