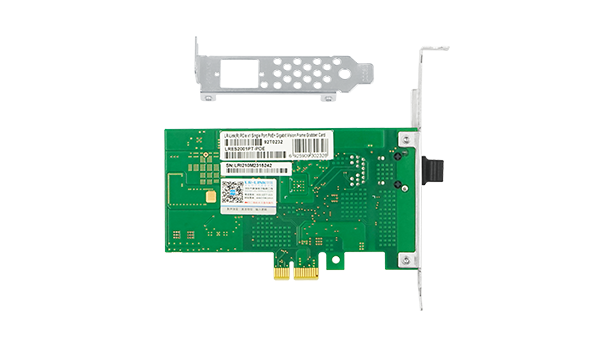

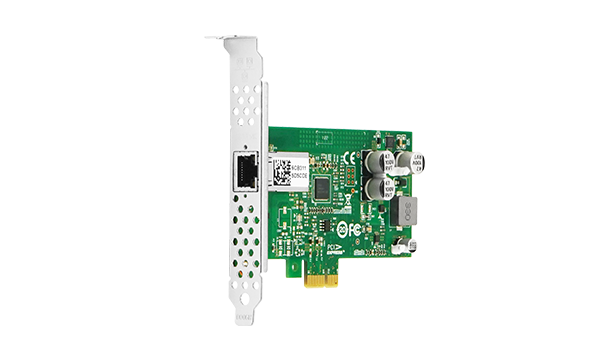

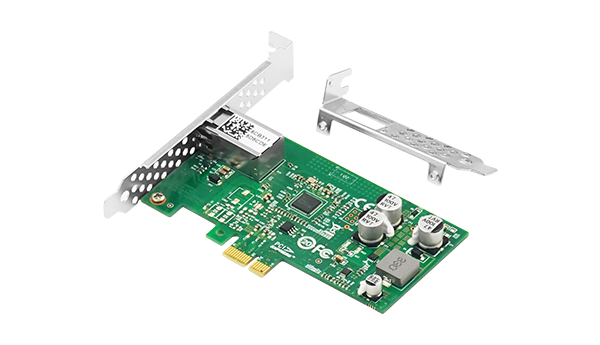

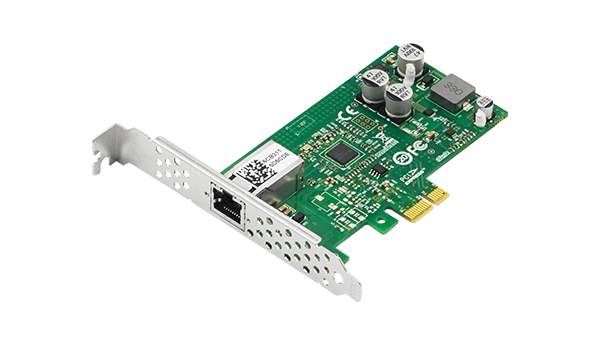

PCIe x1 Single-port 802.3at PoE+ Gigabit Vision Frame Grabber Card (Intel I210 Based)
LRES2001PT-POE is a PCIe x1 PoE+ gigabit single-port copper industrial ethernet network adapter based on the Intel chipset be developed independently by Shenzhen Lianrui Electronics Co., Ltd and is compatible with x4, x8, x16. The adapter is designed mainly used on industrial field vision inspection server and equipment, vision field client, fast moving ethernet data transmission equipment etc. It's also suitable for ordinary servers.
The adapter controller has integrated hardware acceleration capability to perform TCP/UDP/IP checksum and load sharing and TCP segmentation task. Host processing technology can be divided into accelerators and release CPU resources to handle with other applications. The adapter is based on Intel I210 gigabit ethernet MAC+PHY controller.
Complete technical details for integration and deployment planning.
| Baffle Configuration | Full height & half height |
|---|---|
| Power Consumption | 1.0W |
| System Support | Windows 7/8/8.1/10/11 |
| Bus Type | PCIe v2.1 x1 , compatible with x4 ,,x8 , x16 |
|---|---|
| Data Rate | 10/100/1000Mbps |
| Connector | 1*1G RJ45 |
| Standards Compliant | IEEE802.3af -2003 PoE standardIEEE802.3at -2009 PoE standardIEEE 802.3ab 1000BASE-T Gigabit EthernetIEEE 802.3u 100BASE-TX Fast EthernetIEEE 802.3zIEEE 802.1Q VLANsIEEE 802.3xIEEE 1588IEEE 802.3az - Energy Efficient Ethernet (EEE) |
| PXE | Yes |
| FCoE | No |
| DPDK | Yes |
| WoL | No |
| Jumbo frame | Yes |
| PCI-SIG* SR-IOV | Yes |
| VMDq | Yes |
| Operating Temperature | 0 ℃ to 55 ℃ (32 ℉ to 131 ℉) |
| Storage Temperature | -40 ℃ to 85 ℃ (-40 ℉ to 185 ℉) |
| Storage Humidity | Maximum: 90% non-condensing relative humidity at 35 ℃ |
| PCB Size(mm) | 137**1.6 |
| Weight(g) | * |
| Status indication | POE, Green bright |
| P/N | Description |
|---|---|
| LRES2001PT-POE | PCIe x1 Single-port 802.3at PoE+ Gigabit Vision Frame Grabber Card |
