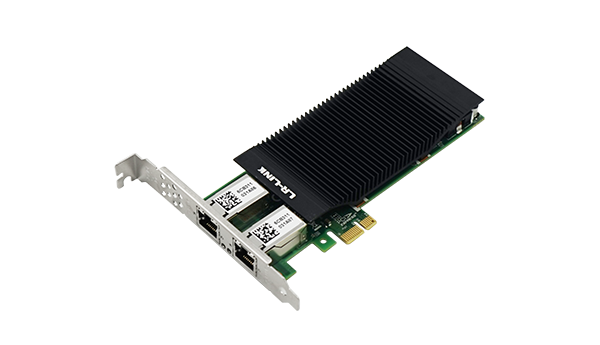

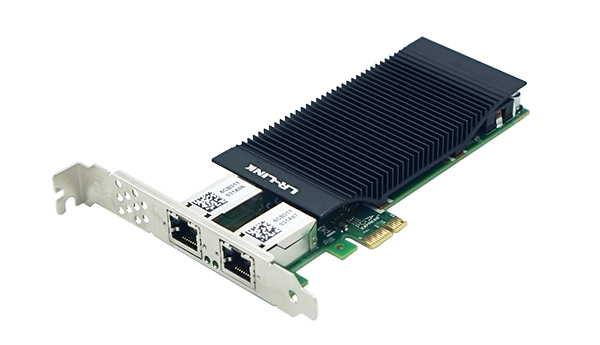

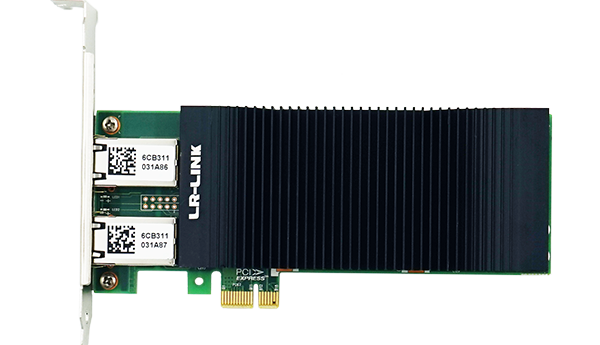

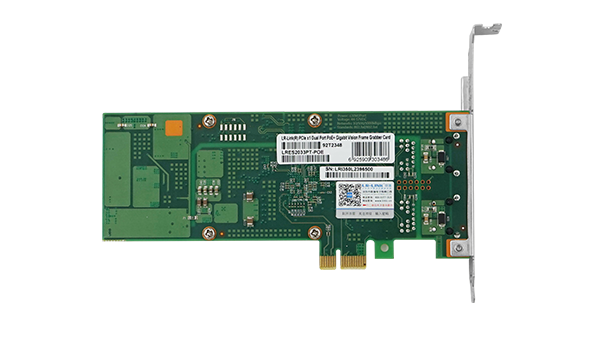

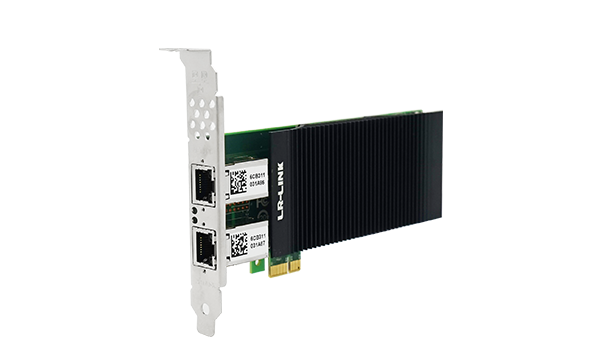

PCIe x1 Dual-port PoE+ Gigabit Vision Frame Grabber Card (Intel I350 Based)
LRES2033PT-POE is a PCIe x1 PoE 1G dual-port copper vision frame grabber card based on the Intel I350 chipset, be developed independently by Shenzhen Lianrui Electronics Co., Ltd and is compatible with x4, x8, x16. The grabber card is designed mainly used on industrial field vision inspection server and equipment,vision field client, fast moving Ethernet data transmission equipment etc. It's also suitable for ordinary servers.
The grabber card’s controller has integrated hardware acceleration capability to perform TCP/UDP/IP checksum and load sharing and TCP segmentation task. Host processing technology can be divided into accelerators and release CPU resources to handle with other applications. The adapter is based on Intel I350 dual gigabit ethernet MAC+PHY dual port controller
Complete technical details for integration and deployment planning.
| Baffle Configuration | Full height & half height |
|---|---|
| Power Consumption | 5.0W |
| POE Output（max） | 30 W/port |
| Total output power | Power form PCIe up to 60W |
| PoE Voltage | 48V |
| System Support | Windows XP/Visat/7/8/8.1/10/11 |
| Bus Type | PCIe v2.1 x1 , compatible withx4, x8 , x16 |
|---|---|
| Data Rate | 10/100/1000Mbps |
| Connector | 2*1G RJ45 |
| Standards Compliant | IEEE802.3at -2009 PoE standardIEEE802.3af -2003 PoE standardIEEE 802.3ab 1000BASE-T Gigabit EthernetIEEE 802.3u 100BASE-TX Fast EthernetIEEE 802.3zIEEE 802.1Q VLANsIEEE 802.3xIEEE 1588IEEE 802.3az - Energy Efficient Ethernet (EEE) |
| PXE | Yes |
| FCoE | No |
| DPDK | Yes |
| WoL | No |
| Jumbo frame | Yes |
| PCI-SIG* SR-IOV | Yes |
| VMDq | Yes |
| Operating Temperature | 0 ℃ to 55 ℃ (32 ℉ to 131 ℉) |
| Storage Temperature | -40 ℃ to 85 ℃ (-40 ℉ to 185 ℉) |
| Storage Humidity | Maximum: 90% non-condensing relative humidity at 35℃ |
| PCB Size(mm) | 160*68.8*1.6 |
| Weight(g) | * |
| Status indication | POE, Green |
| P/N | Description |
|---|---|
| LRES2033PT-POE | PCIe x1 Dual Port 802.3at PoE+ Gigabit Vision Frame Grabber Card |
