LRES2041PTI-2RJ45
IPC Card

LRES2041PTI-2RJ45
M.2 BM 1G Dual-port Adapter

M.2 BM 1G Dual-port Adapter

PDF
LRES2041PTI-2RJ45
PDF --
Download
Inquiry
Suggestion
LRES2041PTI-2RJ45
LRES2041PTI-2RJ45 view 1
LRES2041PTI-2RJ45 view 2
LRES2041PTI-2RJ45 view 3
LRES2041PTI-2RJ45 view 4
Overview Specifications Version Query
Overview

Product Overview

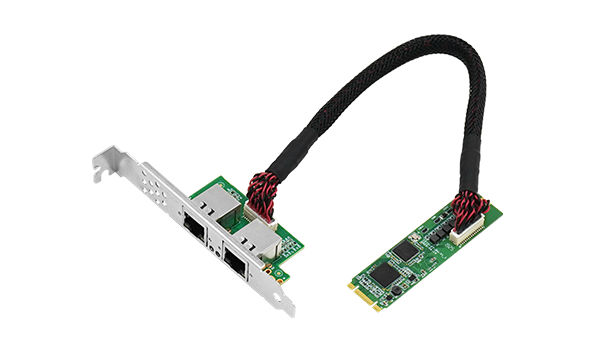

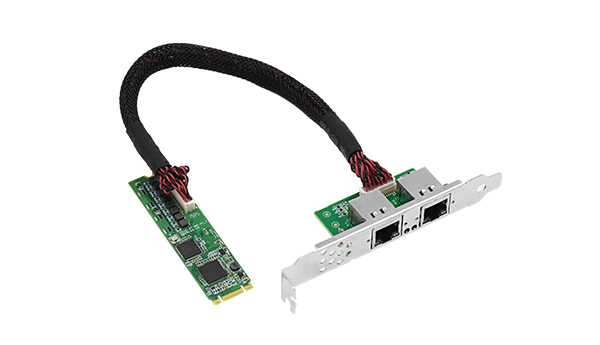

The LRES2041PTI-2RJ45 is a dual-port Gigabit Ethernet adapter independently developed by Linkreal Co., Ltd.,based on the Intel® I210 controller. Featuring an M.2 B+M Key interface, it supports stable and reliable 10/100/1000 Mbps network connections. With its PCIe 2.1 x1 interface to the host system, the adapter offers excellent compatibility and low power consumption.
The adapter adopts a modular split design, consisting of two parts: an integrated dual RJ45 network port module,and a compact M.2 2280 (B+M Key) sub-board connected via a dedicated cable. This flexible architecture allowsdeployment in space-constrained or structurally customized system environments.
In addition to delivering high-speed and stable data transmission, the adapter ensures broad compatibility,meeting the stringent demands of industrial automation and embedded systems for real-time performance,stability, and efficiency. It serves as an ideal network connectivity solution for industrial automation, intelligent manufacturing, edge computing, and a wide range of embedded applications.


Specifications

Technical Specifications

Complete technical details for integration and deployment planning.

Rocky             Fangde OS               OpenEuler

LRES2041PTI-2RJ45 - Rocky             Fangde OS               OpenEuler Specifications
Operating Temperature -40°C to 85°C
Storage Temperature -40°C to 85°C
Storage Humidity Maximum: 90% non-condensing relative humidity at 35 °C
Certification FCC,CE, RoHS
PCB Size(Unit:mm) 80*22
Package Size (Unit: mm) 179* 150*3
Internet Network Adapter *1
Product Warranty Card *1
Packaging Carton + Anti-static bag
