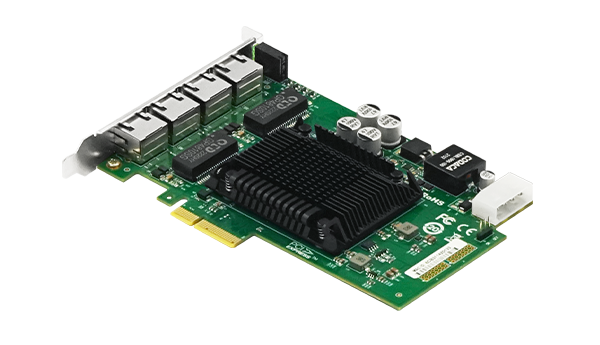

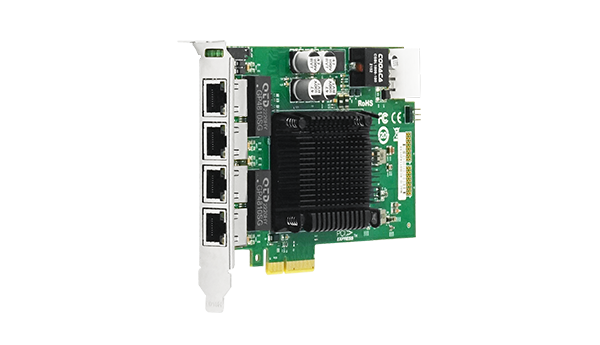

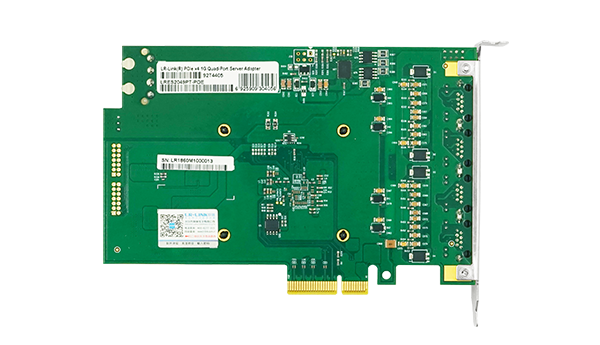

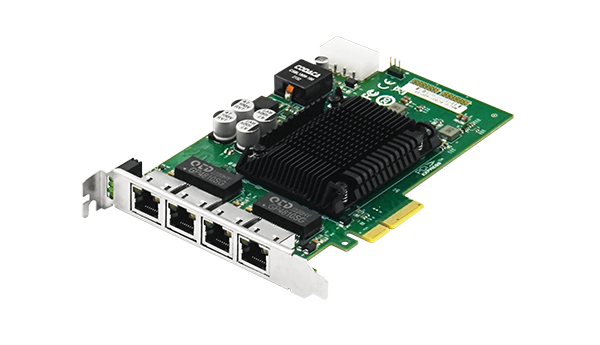

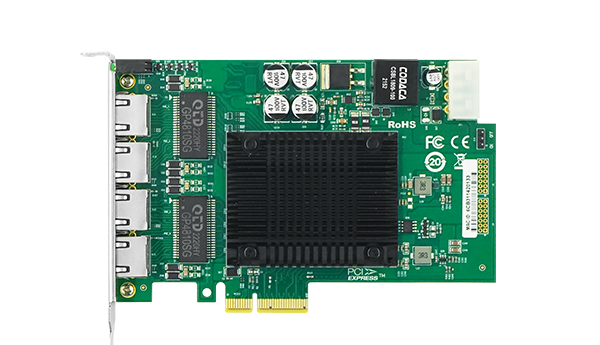

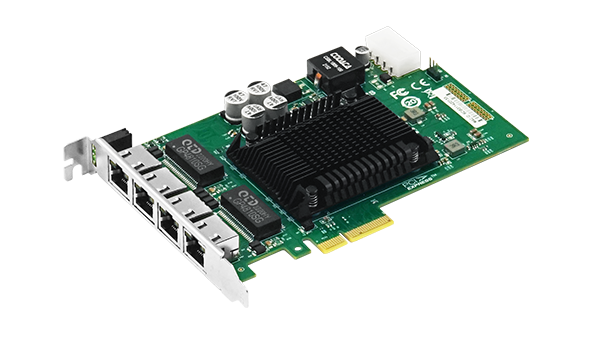

PCIe x4 Quad-port Gigabit PoE+ Ethernet Network Adapter (WX1860 Based)
LRES2049PT-POE is a PCI Express v2.1 x4 Quad-port copper gigabit PoE+ ethernet network adapter developed by Shenzhen Lianrui Electronics Co., Ltd. based on Net-swift. This adapter can be compatible with PCIe x8 and x16 . The adapter card achieves a quad-port bidirectional communication transfer rate with a theoretical throughput of 2.5G on a PCI Express v2.1 x4 bus.
The ethernet network card (LRES2049PT-POE) with Net-swift 's independent intellectual property rights launched by Shenzhen Lianrui Electronics Co., Ltd. has a fully integrated gigabit ethernet media access control (MAC) module. This server adapter card is mainly designed to be used in industrial field visual inspection servers and equipment, visual field clients, fast mobile Ethernet data transmission equipment, etc. It is also suitable for ordinary servers.
The main controller used by Net-swift's independent intellectual property rights and independent controllability, which is of great significance for breaking the monopoly of certain enterprises and ensuring information security.
The controller used by LRES2049PT-POE is autonomous and controllable. The indicators including data transmission, data network bandwidth, average transmission delay, and actual small packet transmission rate have reached the industry level.
Complete technical details for integration and deployment planning.
| Baffle Height | Full height bracket |
|---|---|
| Power Consumption | 2.5W |
| PoE output power/port(max) | 30W |
| PoE total output power consumption (max) | PCIe power supply up to 60W |
| OS Support | * Windows 7/8.1/10/11* Windows Service 2008 /R2 /2012 /R2 /2016 /2019* CentOS / RHEL 6.5~8.5(7.0 is not currently supported)* Ubuntu 14.04~20.04/21.04/21.10* SLES 11 SP3、12 SP1/SP5、15 SP2/SP3* Kylin V10* CentOS 8.1~8.4* Ubuntu 20.04.1* Loongnix* UOS |
|---|---|
| Bus Type | PCI Express v2.1 (2.5GT/s) x4 ,compatible with x8 / x16 |
| Data rate per port | 100/1000Mbps |
| Connector | 4* 8-Pin RJ45 Connector |
| Power supply | PCIe + ATX |
| Standards compliant | IEEE 802.3ab 1000BASE-T Gigabit EthernetIEEE 802.3u 100BASE-TX Fast EthernetIEEE 802.3az Energy Efficient Ethernet (EEE) IEEE 802.1Q VLAN IEEE 802.1ASIEEE 802.1Qau IEEE 802.1pIEEE 802.1Qbg Virtual Bridging IEEE 802.1Qbb Priority Flow Control |
| PXE | Yes |
| DPDK | Yes |
| WoL | Yes |
| iSCSI | No |
| Jumbo Frames | Yes |
| FCoE | No |
| VMDq、SR-IOV | Yes |
| IPsec | Yes |
| Jumbo DataFrame Max | 9.5KB |
| Operating Temperature | 0℃ to 55℃ (32℉ to 131℉) |
| Storage Temperature | -40℃ to 70℃ (-40℉ to 158℉) |
| Storage Humidity | Maximum: 90% non-condensing relative humidity at 35℃ |
| Certification | FCC, CE, RoHS |
| PCB Size (mm ±0.5mm) | 156.7*104.37*1.6 |
| Weight (g ±2g) | * |
| LED indication | POE, Green Link |
| P/N | Description |
|---|---|
| LRES2049PT-POE | PCIe x4 Quad-port Gigabit PoE+ Ethernet frame grabber (WX1860) |
