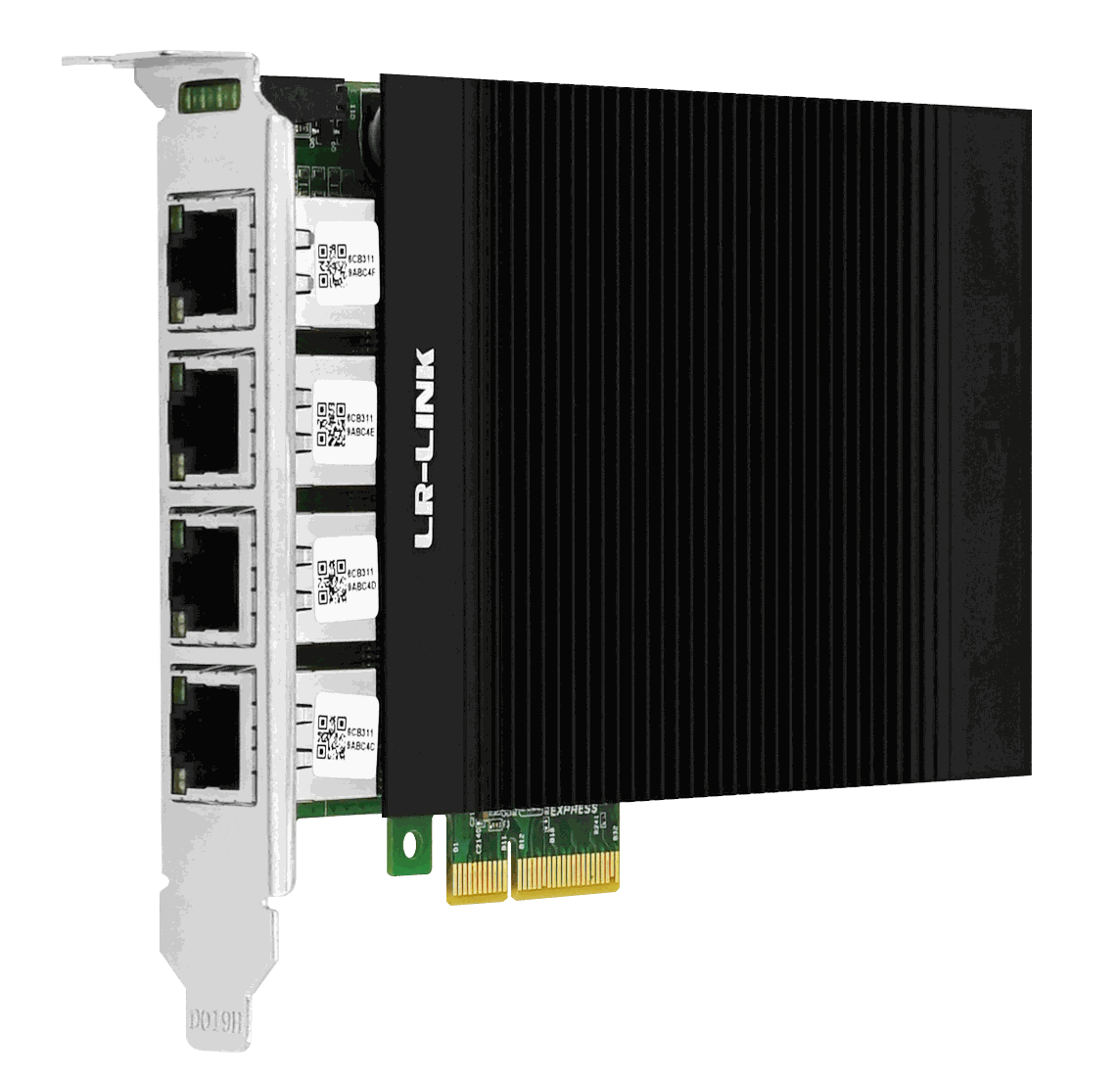

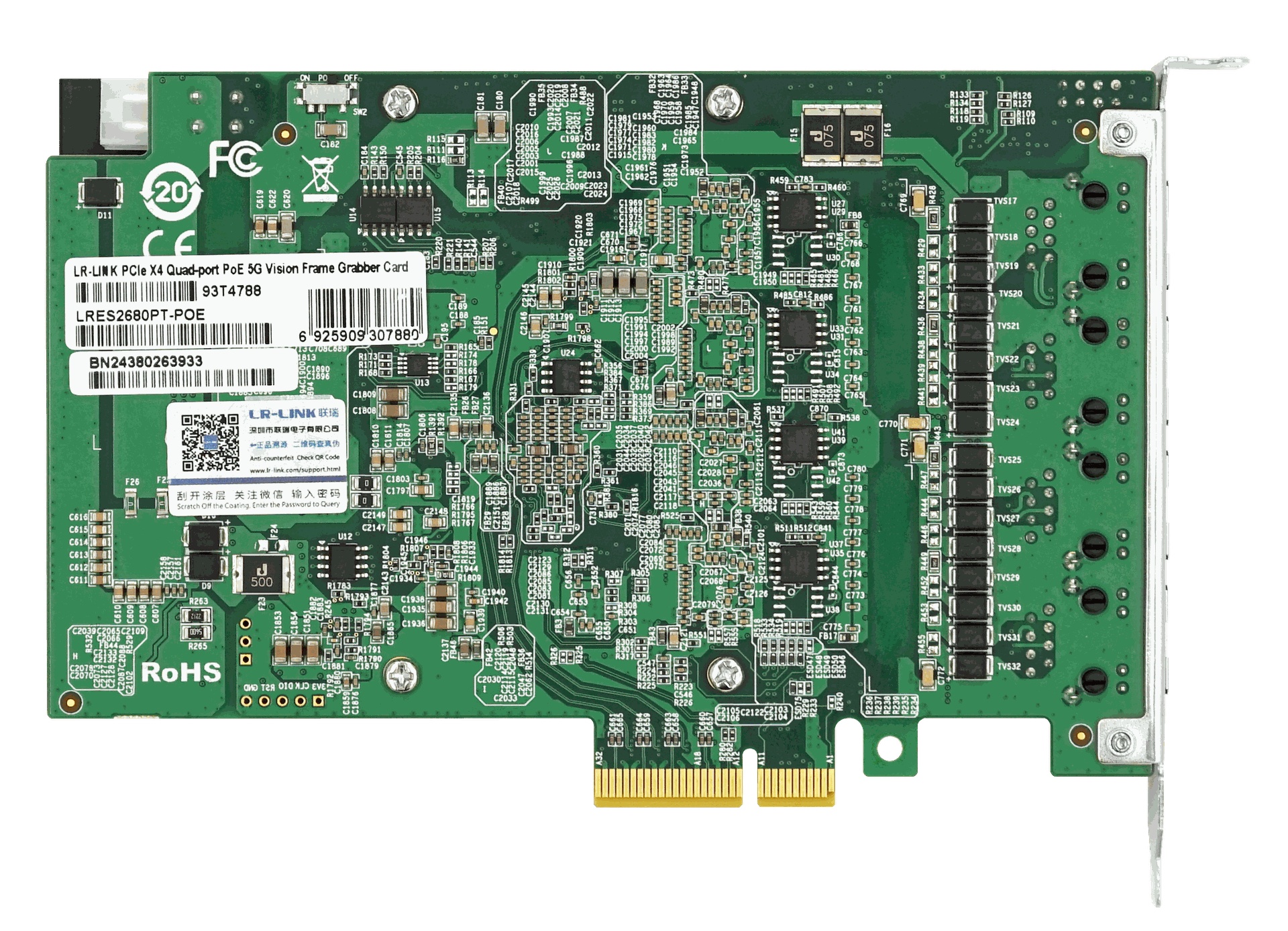

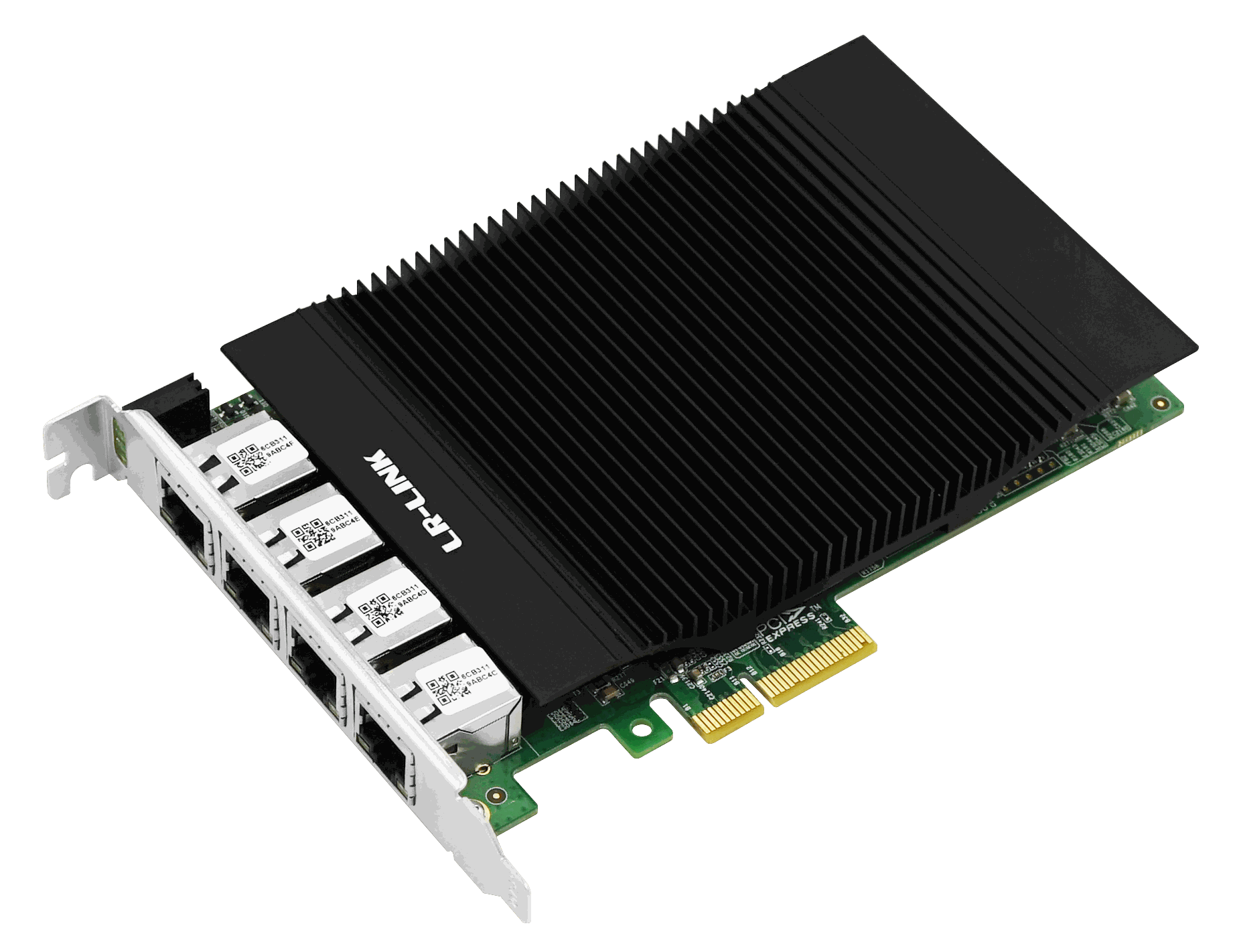

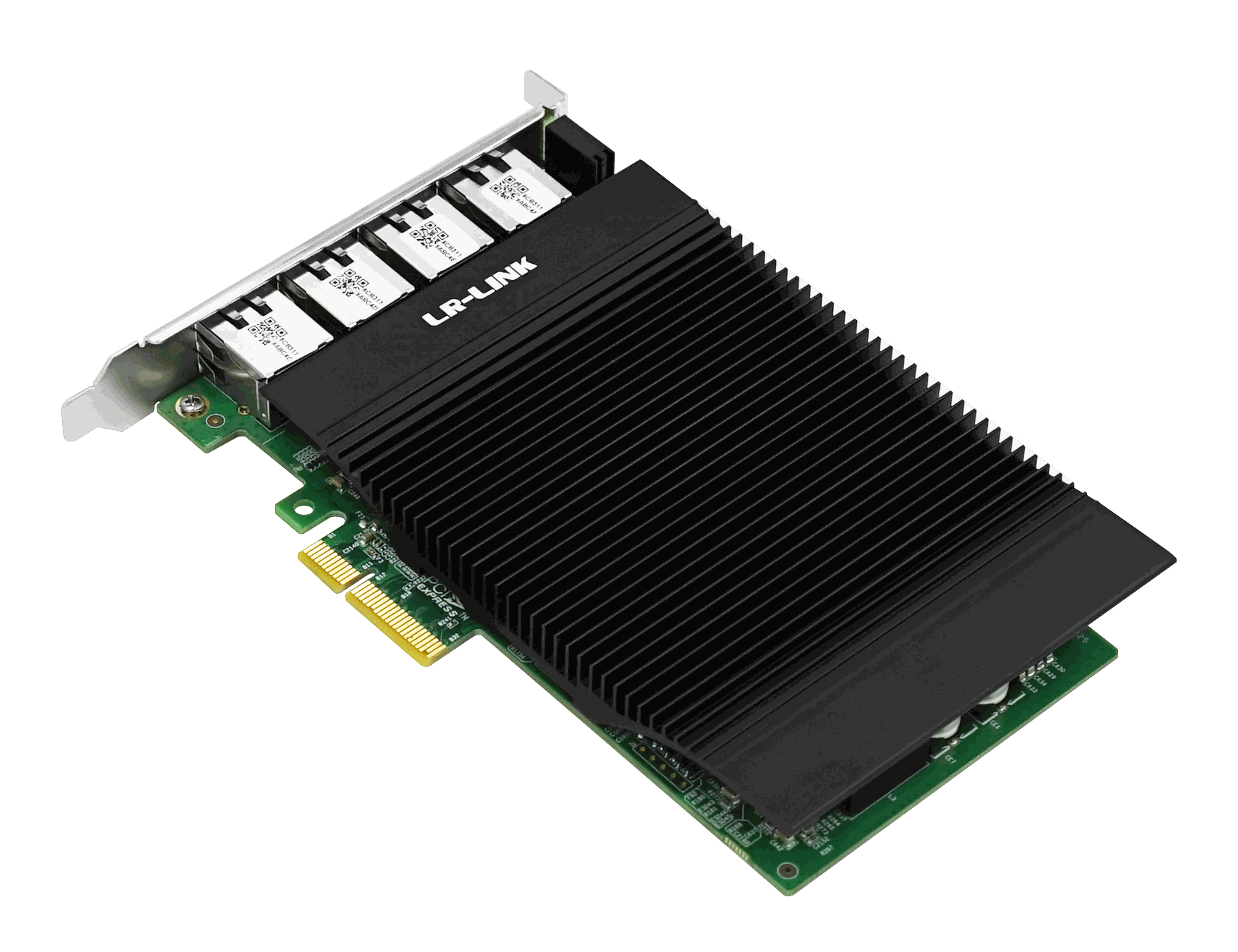

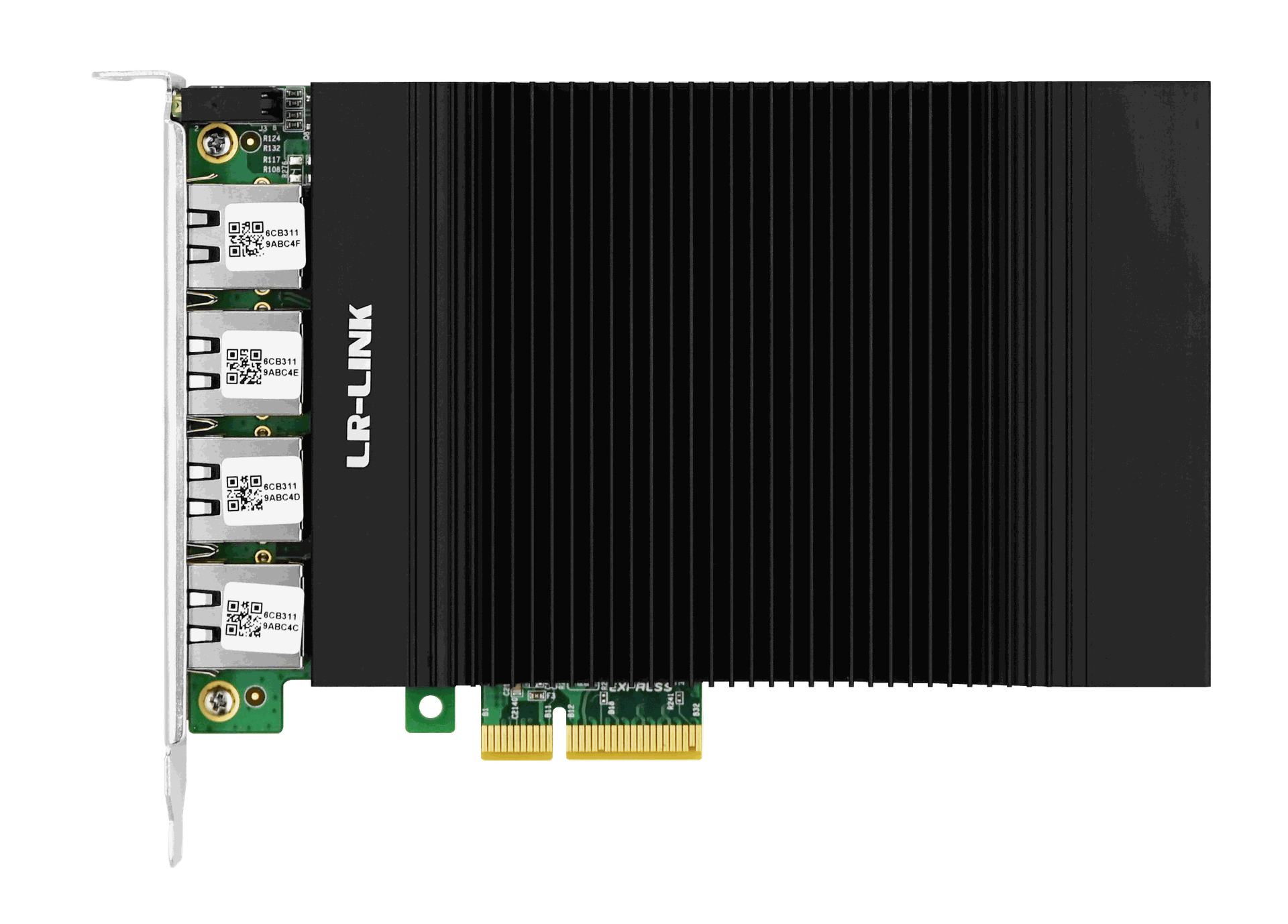

PCIe X4 Quad-port PoE 5G Vision Frame Grabber Card
LRES2680PT-POE is a high-performance quad-port PoE 5G vision frame grabber card developed by Linkreal Co., Ltd., based on the Realtek RTL8126 controller. Each RJ45 port supports up to 5Gbps data rate and 30W PoE+ output, with a total power budget of 90W.
The card is compliant with IEEE 802.3at PoE+ standard and features a resettable electronic fuse for reliable PoE protection. PoE power can be controlled via both hardware (physical) and software switches, providing flexible power management and enhanced safety. PoE software utilities allow real-time monitoring of port status and simplify system maintenance.
Optimized for image acquisition applications, the card supports multi-queue parallel processing, traffic shaping, and advanced network management functions, making it suitable for machine vision, intelligent surveillance, industrial automation, and traffic monitoring systems requiring high bandwidth and stable network performance.
Complete technical details for integration and deployment planning.
Specifications
Controller | Realtek RTL8126 |
Host Connector | PCIe3.0 x4 |
Data rate | 100Mbps/1Gbps/2.5Gbps/5Gbps |
Number of Port | 4 |
Connector | RJ45 |
Protocol Support | IEEE 802.3,IEEE 802.3u,IEEE 802.3bz,IEEE 802.3ab,IEEE 802.3x,IEEE 802.3at |
OS Support | Windows Linux |
Cable Requirements | CAT6, CAT6A or CAT7, up to 100M |
Function Support | PXE |
| Function Support | Jumbo Frame |
Protection
ESD | 8KV |
Surge Protection | 4KV |
POE
Connection | 4 pin ATX Power Jack |
Input | 12VDC direct from PCIe slot 12VDC ATX power jack input |
POE+ output | Up to 30W power output per port UP to 90W total power output for four ports protect by recoverable eFuse |
POE Control/Monitoring | PoE on/off control by Hardware switch Programmable POE Management Tool and power on/off control |
LED Indicators
LED Type | Color/Behavior | Note |
Link | Off | No Link |
Green | Link at 100Mbps | |
Amber | Link at 1000Mbps | |
Activity | Off | No Activity |
Green(blink) | Link up(traffic flowing) |
Technical Specifications
Operating Temperature | 0°C to 50°C |
Storage Temperature | -40°C to 70°C |
Storage Humidity | Maximum: 90% non-condensing relative humidity at 35 °C |
Certification | FCC,CE,RoHS |
Physical Properties
PCB Size(Unit:mm) | 156.7*104.4 |
Package Size (Unit: mm) | 250*170*32 |
Packing List
Internet Network Adapter | *1 |
Product Warranty Card | *1 |
Packaging | Carton + Blister Box |
