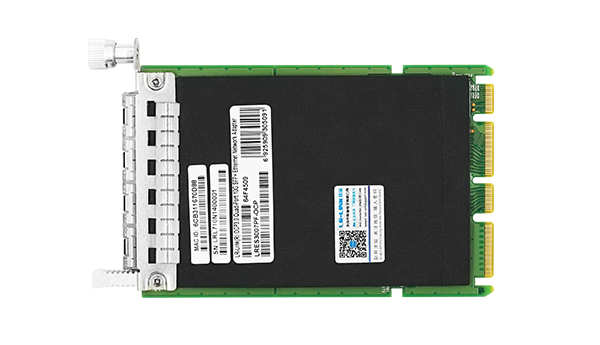

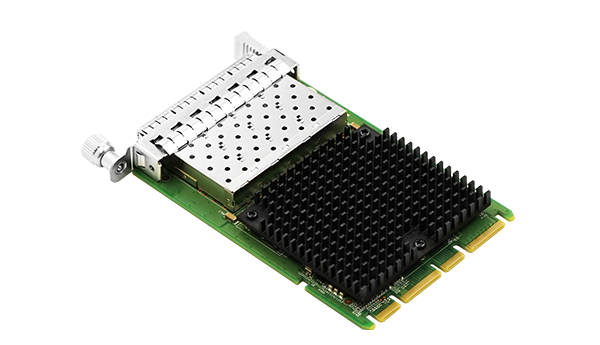

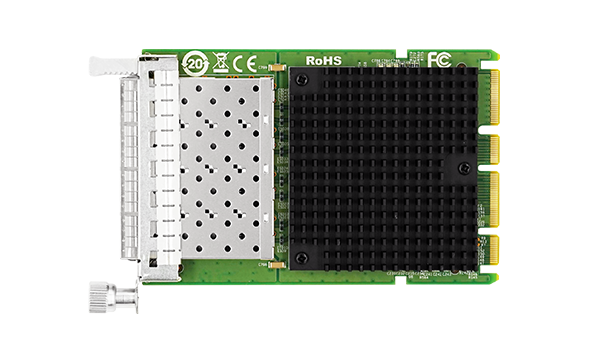

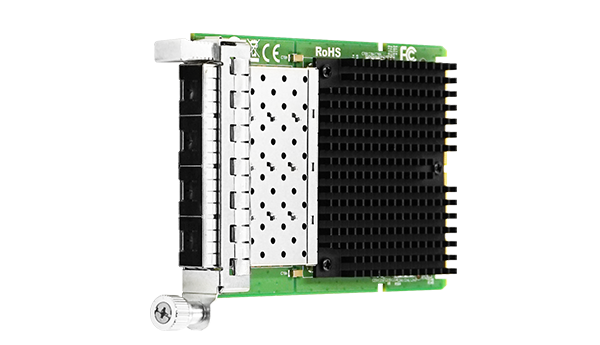

OCP 3.0 Quad-port Mezzanine 10G SFP+ Ethernet Network Adapter (Intel XL710)
LRES3007PF-OCP is an OCP 3.0 10G quad-port optical fiber ethernet network adapter independently developed by Linkreal Co., Ltd. based on the Intel XL710 main control solution. (SFF) panel. The adapter addresses the needs of next-generation data centers by providing features for server and network virtualization technologies, delivering reliable performance in flexible LAN and SAN networks.
LRES3007PF-OCP can bundle multiple ports into groups to achieve fault tolerance and redundancy to ensure network performance and expand network bandwidth. It can implement real-time self-detection and route communication from faulty ports to other members of the same group to continue running. Enable uninterrupted, high-performance communications. In addition to stateless offloading, the adapter can also distribute network traffic to CPU cores, improving network throughput. At the same time, LSO and GSO are offloaded from the host software, thereby reducing CPU overhead for parity checks. Free up CPU resources to work on other applications. The LRES3007PF-OCP is an ideal solution for deploying multiple networks and deploying key network applications and environments on high-performance servers. The adapter card is based on Intel Intel XL710 Ethernet MAC+PHY (Media Access Controller and Physical Interface Transceiver) four-port controller.
The LRES3007PF-OCP is designed for excellent performance in multiprocessor systems. It is applied to meet the needs of the current and long-term server market for network traffic and data distribution, processing and virtualization, big data computing, and cloud computing.
OCP3.0 Quad-port 25G SFP28 Ethernet Network Adapter: LRES3027PF-OCP
Complete technical details for integration and deployment planning.
| Bus Type | OCP3.0 SFF |
|---|---|
| Data rate per port | 1/10Gbps |
| Connector | 4*10G SFP+ |
| Power Supply | OCP 3.0 |
| Protocol Support | IEEE 802.3ae 10 Gigabit Ethernet over fiberIEEE 802.3x Full Duplex and flow controlIEEE 802.1ASIEEE 802.1Q VLANIEEE 802.3ADIEEE 1588IEEE 802.3az - Energy Efficient Ethernet (EEE) |
| PXE | Yes |
| DPDK | Yes |
| WoL | Yes |
| iSCSI | No |
| Jumbo Frames | Yes |
| FCoE | No |
| SR-IOV | Yes |
| IEEE 1588 PTP | Yes |
| IPsec | No |
| Jumbo data frame MAX | 9.7KB |
| ESD_Contact discharge | ±8KV (Class B) |
| ESD_Air discharge | ±4KV (Class C) |
