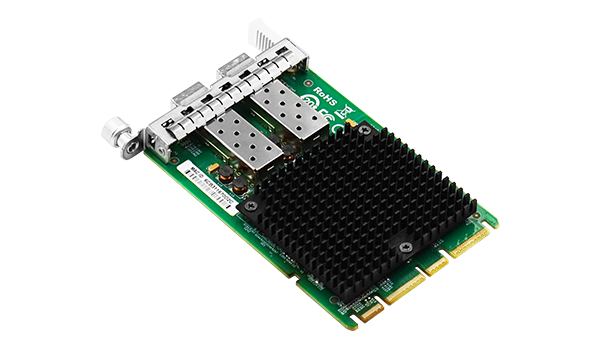

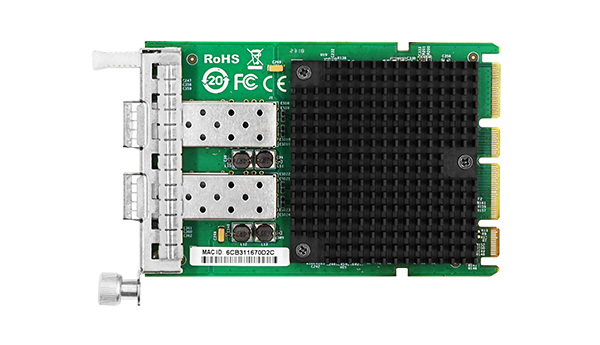

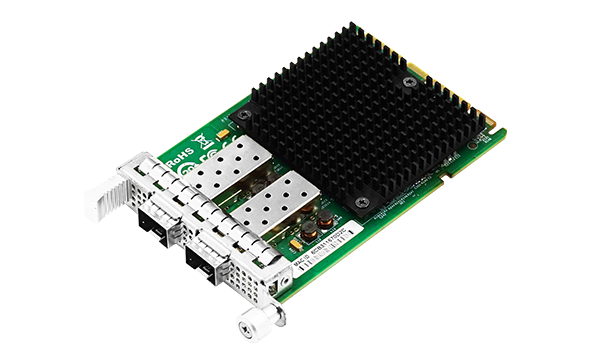

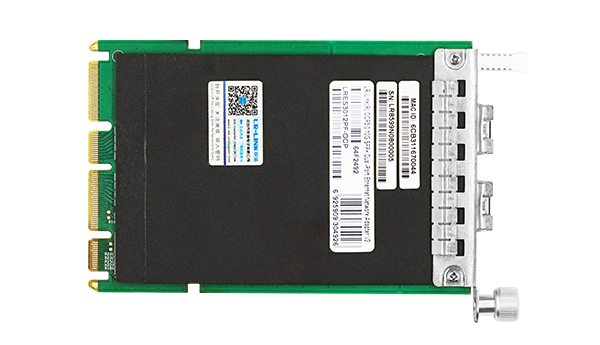

OCP 3.0 Dual-port Mezzanine 10G SFP+ Ethernet Network Adapter (Intel 82599)
LRES3012PF-OCP is a OCP 3.0 dual-port fiber ethernet network mezzanine card developed by Linkreal Co., Ltd. on the basis of Intel chip, using a physical board size in accordance with OCP 3.0 design specifications, small size (SFF) structure. The fit card meets the needs of the next generation of data centers by providing features for server and network virtualization technologies. Provide reliable performance on flexible LAN and SAN networks. The fit card has a flexible dual-port 10GbE link rate on a SFF structure.
This adaptive card enables fault tolerance and redundancy in groups through multiple port bundles at the same time to guarantee network performance and extend network bandwidth, enables real-time self-detection, and enables the routing of traffic from failed ports to other members of the same group to continue to operate for uninterrupted, high-performance communication. In addition to stateless uninstall, the adaptive card can also be distributed over network traffic to the CPU core, improving the throughput of the network.
The LRES3012PF-OCP server fit card is designed to perform well in multiprocessor systems. It is used to meet the needs of the current and longer-term server market for network traffic and data se throughout, processing and virtualization and big data computing, cloud computing, etc.
OCP 3.0 Dual-Port 10G Copper Ethernet Network Adapter: LRES3021PT-OCP
Complete technical details for integration and deployment planning.
| Bus Type | OCP 3.0 |
|---|---|
| Data rate supported per port | 10000MbE |
| Connector | 2*SFP+ |
| Protocol Support | IEEE802.3ae 10 Gigabit Ethernet over fiberIEEE 802.3x Full Duplex and flow controlIEEE 802.1ASIEEE 802.1Q VLANIEEE 802.3ADIEEE 1588IEEE 802.3az - Energy Efficient Ethernet (EEE) |
| iSCSI | Yes |
| WoL | No |
| Jumbo Frames | Yes |
| DPDK | Yes |
| PXE | Yes |
| FCoE | Yes |
| P/N | Description |
| LRES3012PF-OCP | OCP 3.0 Dual-port Mezzanine 10G SFP+ Ethernet Network Adapter (Intel Chip Based) |
