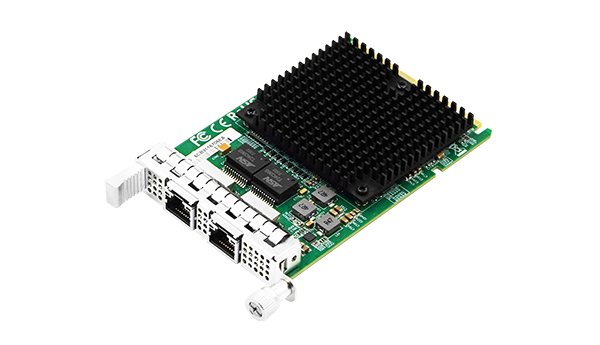

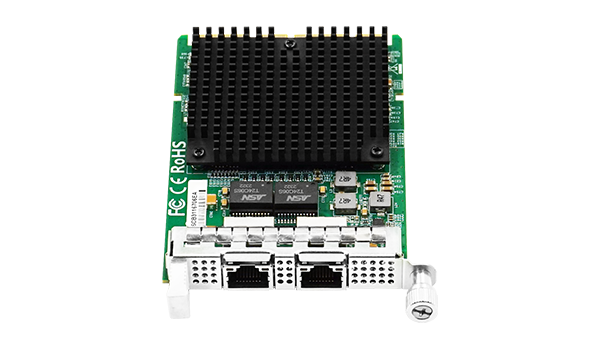

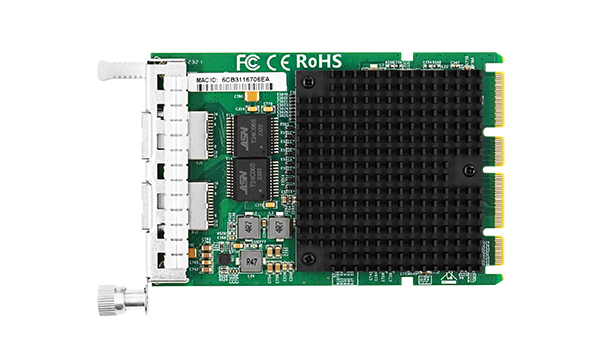

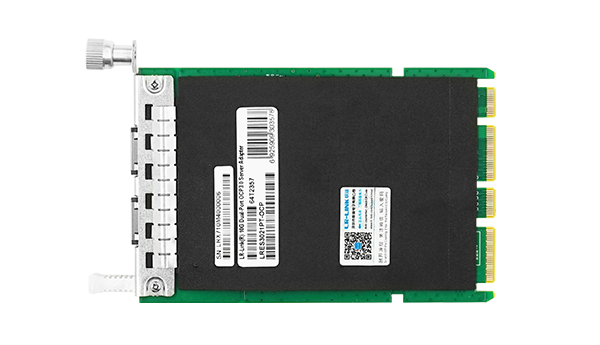

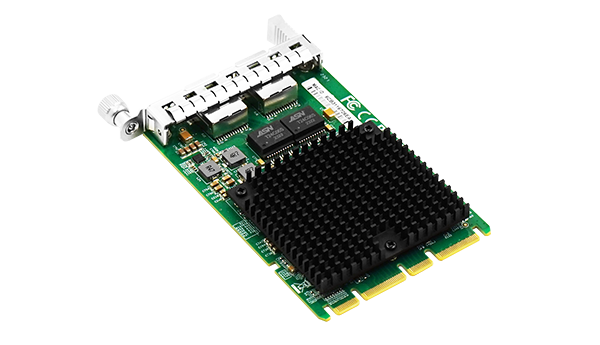

OCP 3.0 Dual-Port 10G Copper Ethernet Network Adapter (Intel X710)
LRES3021PT-OCP is an OCP3.0 SFF Dual-port copper cable 10G ethernet network adapter independently developed by Shenzhen Lianrui Electronics Co., Ltd. based on the Intel X710 main control solution. This adapter is mainly designed for servers and their application equipment, and is also suitable for common servers.
LRES3021PT-OCP is developed based on Intel 10G multi-rate Ethernet MAC+PHY (Media Access Controller and Physical Interface Transceiver) controller, adding 2.5G and 5.0 NBae-T support for G and adaptive link rates. In addition to the self-adaptive capability of up to five different rates, the power consumption under full load is only 7.5W, which brings more excellent performance to the application of the network card.
Complete technical details for integration and deployment planning.
| Fiber Type | CAT-5 |
|---|---|
| CAT-6 | 50M(10Gbps);100M(5Gbps); |
| CAT-6e | 50M(5Gbps); |
| Protocol Support | IEEE 802.3an 10GBASE-T EthernetIEEE 802.3bz 2.5/5GBASE-T EthernetIEEE 802.3ab 1000BASE-T EthernetIEEE 802.3u 100BASE-TX EthernetIEEE 802.3az - Energy Efficient Ethernet (EEE)IEEE 802.3zIEEE 802.1Q VLANsIEEE 802.3xIEEE 1588 |
|---|---|
| PXE | Yes |
| DPDK | Yes |
| WoL | No |
| iSCSI | No |
| Jumbo Frames | Yes |
| IEEE 1588 | Yes |
| SR-IOV | Yes |
| Jumbo data frame MAX | 9.7KB |
| ESD_Contact discharge | ±6KV (Class C) |
| ESD_Air discharge | ±8KV (Class C) |
| Operating Temperature | 0℃ to 50℃ (-32 ℉ to 122 ℉) |
| Storage Temperature | -40℃ to 70℃ (-40℉ to 158℉) |
| Storage Humidity | Maximum: 90% non-condensing relative humidity at 35 ℃ |
| Certification | FCC, CE, RoHS |
| PCB Size(mm) | 115*76*1.6 |
| Package Size(mm) | 179*150*30 |
| Weight(g) | * |
| 100/1000Mbps/2.5/5Gbps | LINK |
| ACT | Orange Blink |
| 10Gbps | LINK |
| ACT | Orange Blink + Green Link |
| P/N | Description |
| LRES3021PT-OCP | OCP 3.0 Dual-Port 10G Copper Ethernet Network Adapter (Intel X710) |
