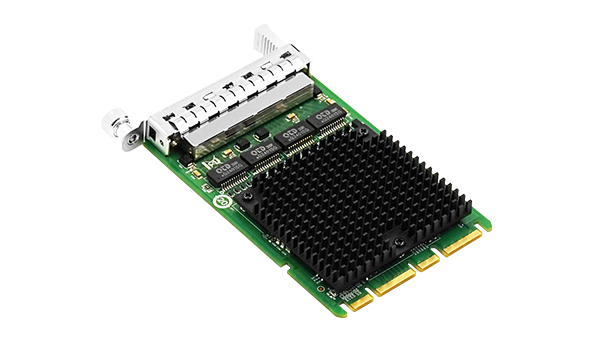

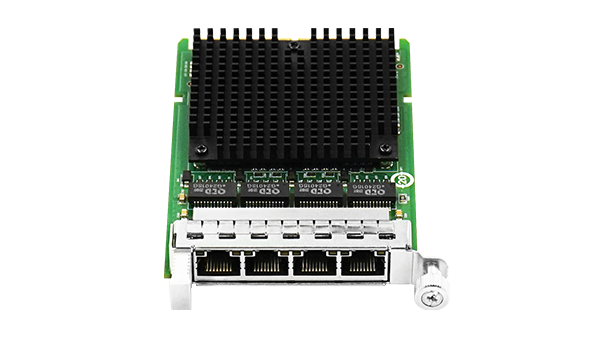

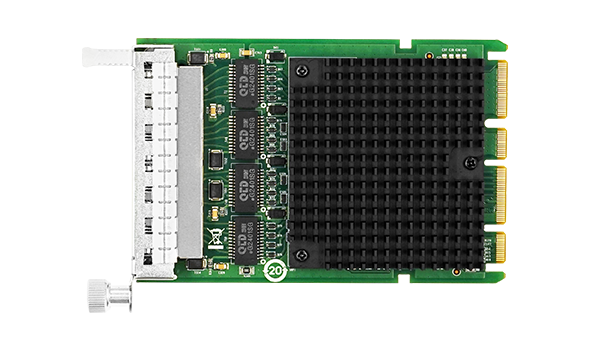

OCP3.0 Quad-port 1G Ethernet Network Adapter V2 (Intel I350 Based)
LRES3023PT-OCP is an OCP3.0 SFF 4-port copper Gigabit Ethernet network adapter independently developed by Linkreal Co., Ltd. based on Intel I350 master solution. The adapter is mainly designed for servers and their application equipment. LRES3023PT-OCP is able to achieve fault tolerance and redundancy by bundling and aggregating multiple ports into a group to extend network bandwidth and guarantee network performance, and can automatically detect and route communications from the faulty ports to other members of the same group in real time for uninterrupted high-performance communications.
The LRES3023PT-OCP adopts the SFF standard architecture of OCP3.0, which is developed on Intel Gigabit Ethernet MAC+PHY (Media Access Controller and Physical Interface Transceiver) controllers, to support the new current and long term server requirements while adapting to the current network. It supports NCSI and Scan Chain functions and has excellent ESD protection.
Complete technical details for integration and deployment planning.
| System Support | * Windows 7/8/8.1/10/11* Windows Server 2008/2012* Windows Server 2016/2019* Windows Server 2022* Deepin 15.11/20/20.6/20.9* VMware ESXi 6.5/6.7/7.0* Ubuntu 18.04.5/20.04.1* Ubuntu 22.04.2/22.04.3* ZTE New Fulcrum 5.0.5/3.2.2* Galaxy Unicorn v10* FreeBSD 12.2/13.2 |
|---|---|
| 10M/100Mbps | Connection Status |
| Transfer status | Green Blink |
| 1Gbps | Connection Status |
| Transfer status | Green Blink + Orange Link |
| Operating Temperature | 0℃ to 55℃ (-32 ℉ to 131 ℉) |
| Storage Temperature | -40 ℃ to 70 ℃ (-40 ℉ to 158 ℉) |
| Storage Humidity | Maximum: 90% non-condensing relative humidity at 35 ℃ |
| Certification | FCC，CE，RoHS |
| PCB size(unit:mm) | 115*76*1.6 |
| Package size (unit: mm) | 179*150*30 |
| Bracket | Default SFF baffle installation |
| Internet Network Adapter | *1 |
| Product Warranty Card | *1 |
| Packaging | Carton + Anti-static bag |
