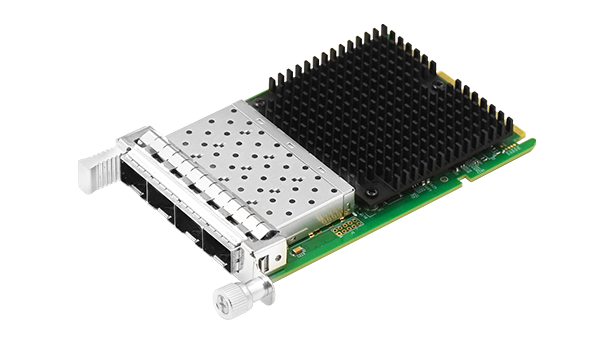

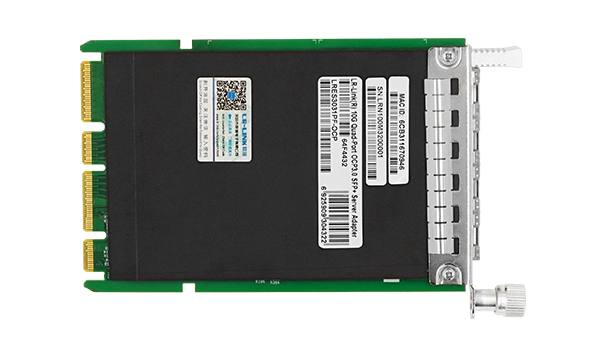

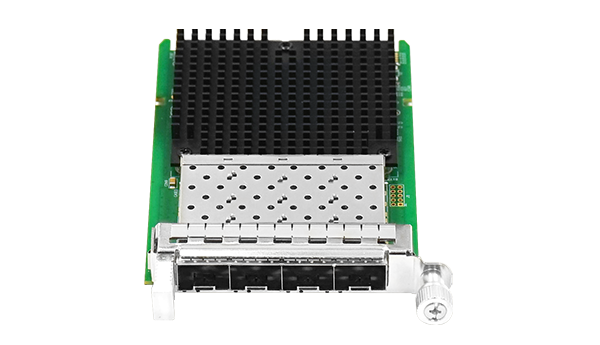

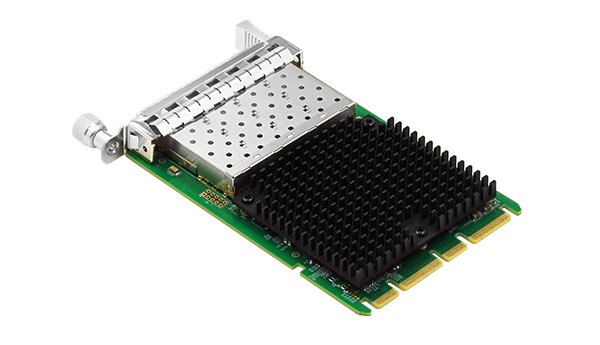

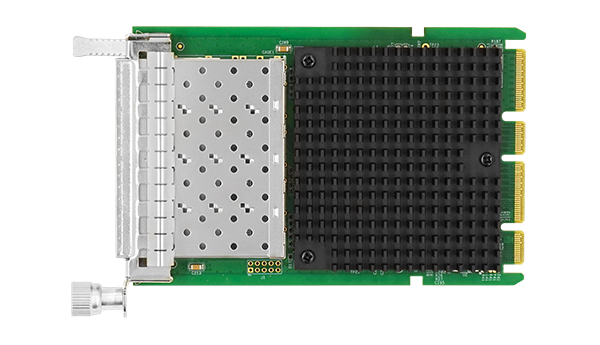

OCP 3.0 Quad Port 10G SFP+ Ethernet Network Adapter (MUCSE N10)
LRES3031PF-OCP is a quad-port optical fiber network adapter with OCP 3.0 SFF structure developed by Shenzhen Lianrui Electronics Co., Ltd. Based on the RNP N10 solution of the MUCSE controller. It adopts the industry-leading intelligent network security control chip, has complete independent intellectual property rights, and realized a high degree of integration of network and security in product performance.
Functionlly: each port of the adapter supports 10G and 1G access at different rates to meet the diverse needs of customers. Unique reconfigurable processor core technology supports fast processing of offloading of various network protocols, including RSS, TSO, GRO, TCO, RCO, and IP/TCP, IP/UDP checksum offloading, etc., with MAC\VLAN\TCP_SYN and other data packet filtering and redirection functions of these data packets to improve the CPU service processing capability.
In addition, the unique network protection technology of the adapter supports ciphertext streaming transmission between ports, and has a guard-style protection function to achieve network attack isolation and protection. It is widely used in ordinary servers and high-end server equipment. In the same category of server equipment, this adapter performs better on domestic CPU platform equipment.
Complete technical details for integration and deployment planning.
| Bus Type | OCP3.0 SFF |
|---|---|
| Data rate per port | 10Gbps |
| Connector | 4*10G SFP+ |
| Protocol Support | IEEE 802.3ae 10 Gigabit Ethernet over fiberIEEE 802.3z Gigabit EthernetIEEE 802.3x Full Duplex and flow controlIEEE 802.1AS / IEEE 802.1Q VLANIEEE 802.3AD / IEEE 802.3adIEEE 802.3az - Energy Efficient Ethernet (EEE)IEEE 802.1P / IEEE 802.3ac |
| PXE | Yes |
| DPDK | Yes |
| WoL | No |
| iSCSI | No |
| Jumbo Frames | Yes |
| FCoE | No |
| Network Virtualization | VEB\VLAN\QinQ\VxLAN\NVRGE |
| Operating Temperature | 0 ℃ to 55 ℃ (32 ℉ to131 ℉) |
| Storage Temperature | -40 ℃ to 70 ℃ (-40 ℉ to 158 ℉) |
| Storage Humidity | Maximum: 90% non-condensing relative humidity at 35 ℃ |
| Certification | FCC, CE, RoHS |
| PCB Size(mm) | 115*76*1.6 |
| Weight(g) | 103.4 |
| 10Gbps | LINK |
| ACT | Green Link + Green Blink |
| P/N | Description |
| LRES3031PF-OCP | OCP 3.0 Quad-Port 10G SFP+ Ethernet Network Adapter (MUCSE Chip Based) |
