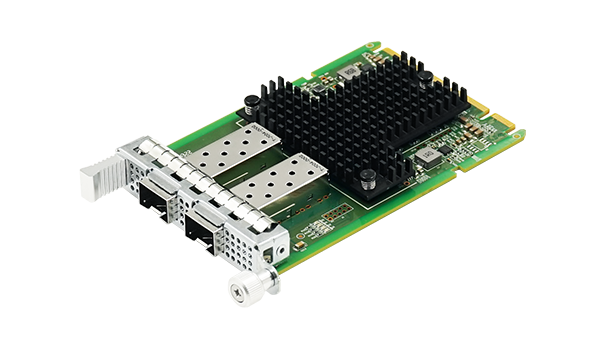

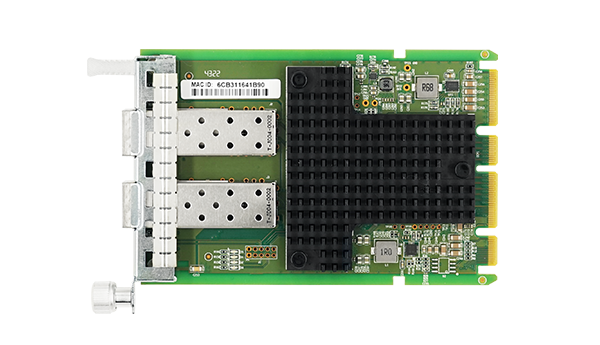

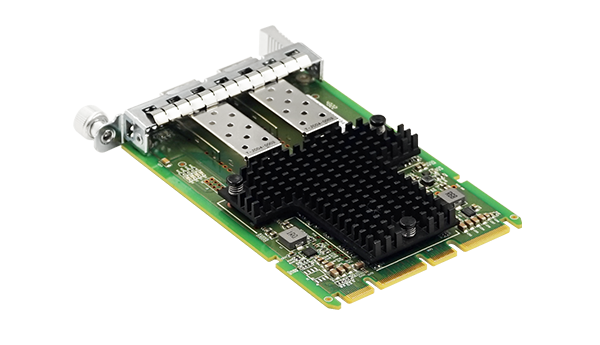

OCP 3.0 Dual-port 10G SFP+ Ethernet Network Adapter (Mucse RNP N10)
LRES3032PF-OCP is a dual-port optical fiber network adapter with OCP 3.0 SFF structure developed by Linkreal Co., Ltd. based on the RNP N10 solution of the MUCSE controllers. It adopts the industry-leading intelligent network security control chip, has complete independent intellectual property rights, and realizes a high degree of integration of network and security in product performance.
In terms of product function: each port of the adapter supports 10G and 1G access at different rates to meet the diverse needs of customers. Unique reconfigurable processor core technology supports fast processing of offloading of various network protocols, including RSS, TSO, GRO, TCO, RCO, and IP/TCP, IP/UDP checksum offloading, etc., with MAC\VLAN\TCP_SYN and other data packet filtering and redirection functions of these data packets to improve the CPU workload processing capability.
In addition, the unique network protection technology of the adapter supports ciphertext streaming transmission between ports, and it has a guard-style protection function to achieve network attack isolation protection. It is widely used in general servers and high-end server equipments. In the same type of server equipments, this adapter performs better in domestic CPU platform equipments.
OCP 3.0 Dual-Port 10G Copper Ethernet Network Adapter: LRES3021PT-OCP
Complete technical details for integration and deployment planning.
| Bus Type | OCP3.0 SFF |
|---|---|
| Data rate per port | 1/10Gbps |
| Connector | 2*10G SFP+ |
| Protocol Support | IEEE 802.3ae 10 Gigabit Ethernet over fiberIEEE 802.3z Gigabit EthernetIEEE 802.3x Full Duplex and flow controlIEEE 802.1AS / IEEE 802.1Q VLANIEEE 802.3AD / IEEE 802.3adIEEE 802.3az - Energy Efficient Ethernet (EEE)IEEE 802.1P / IEEE 802.3ac |
| PXE | Yes |
| DPDK | Yes |
| WoL | No |
| iSCSI | No |
| Jumbo Frames | Yes |
| FCoE | No |
| Network Virtualization | VEB / VLAN / QinQ / VxLAN / NVRGE |
| P/N | Description |
| LRES3032PF-OCP | OCP 3.0 Dual Port 10G SFP+ Ethernet Network Adapter (MUCSE Chip Based) |
Latest certified drivers for all supported operating systems, ensuring optimal performance and compatibility.
Look up product firmware versions, hardware revisions, and OS compatibility by entering your part number or hardware version.
