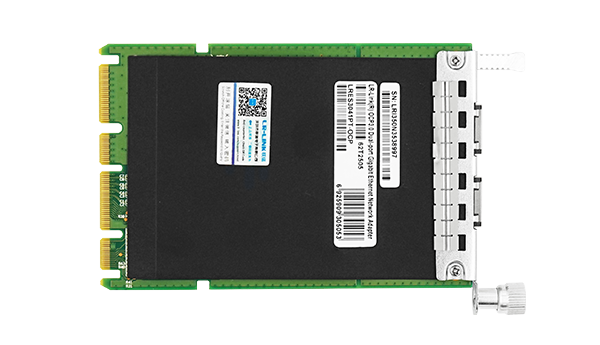

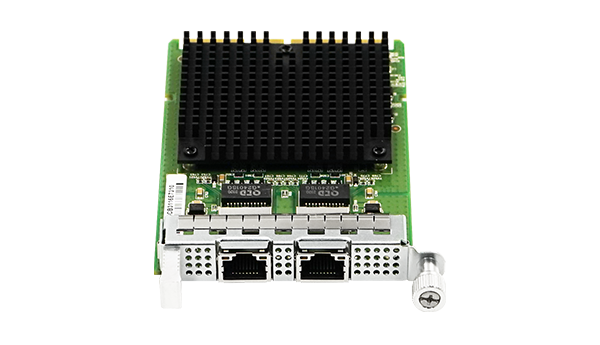

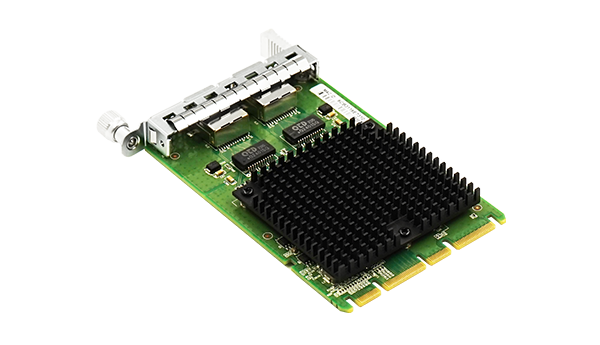

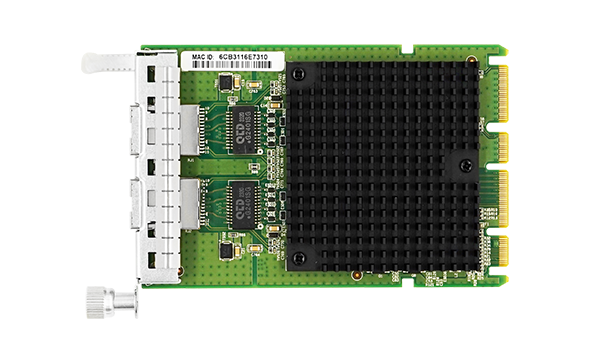

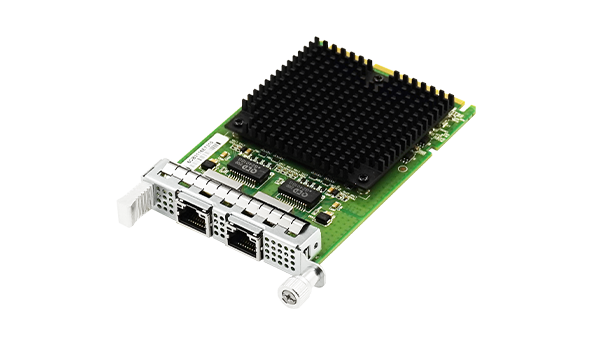

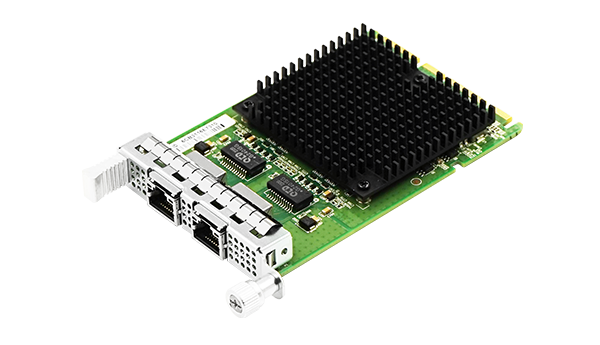

OCP3.0 Dual-port Gigabit Copper Ethernet Network Adapter (Intel I350)
LRES3041PT-OCP is an OCP3.0 SFF dual-port copper Gigabit Ethernet network adapter independently developed by Linkreal Co., Ltd. based on the Intel I350 master control solution. This adapter is mainly designed for use in servers and their application equipment.
LRES3041PT-OCP can simultaneously bundle and aggregate multiple ports into a group to achieve fault tolerance and redundancy, to expand network bandwidth and ensure network performance, and can automatically detect and implement real-time fault recovery. The communication of the port is routed to other members in the same group to continue operation to achieve uninterrupted high-performance communication.
LRES3041PT-OCP adopts the SFF standard structure of OCP3.0, which is developed on the Ethernet MAC+PHY (media access controller and physical interface transceiver) controller based on Intel Gigabit rate, and supports NCSI function and Scan Chain Function, also has ESD anti-static protection ability and surge protection ability.
OCP3.0 Quad-port Gigabit Ethernet Network Adapter: LRES3023PT-OCP
Complete technical details for integration and deployment planning.
| Fiber Type | Cat5 |
|---|---|
| Cat6 | 50M(1Gbps);100M(1Gbps);150M(1Gbps) |
| Cat6e | 50M(1Gbps);100M(100Mbps);150M(100Mbps) |
| Cat7 | 100M(100Mbps) |
| Protocol Support | IEEE 802.3ab 1000BASE-T EthernetIEEE 802.3az - Energy Efficient Ethernet (EEE)IEEE 802.3zIEEE 802.1Q VLANsIEEE 802.3xIEEE 1588 |
|---|---|
| PXE/UEFI | Yes |
| DPDK | Yes |
| WoL | Yes |
| iSCSI | No |
| Jumbo Frames | Yes |
| FCoE | No |
| VMDq、SR-IOV | Yes |
| IPsec | Yes |
| ESD_Air discharge | ±15KV (Class C) |
| Jumbo DataFrame Max | 9.2KB |
| NCSI功能 | Yes |
| Scan Chain | Yes |
| ESD_Contact discharge | ±8KV(Class A) |
| ESD_Air discharge | ±15KV(Class C) |
| Lightning surge test | ±2KVcommon mode |
| Operating Temperature | 0 ℃ to 55 ℃ (32 ℉ to131 ℉) |
| Storage Temperature | -40 ℃ to 70 ℃ (-40 ℉ to 158 ℉) |
| Storage Humidity | Maximum: 90% non-condensing relative humidity at 35 ℃ |
| Certification | FCC, CE, RoHS |
