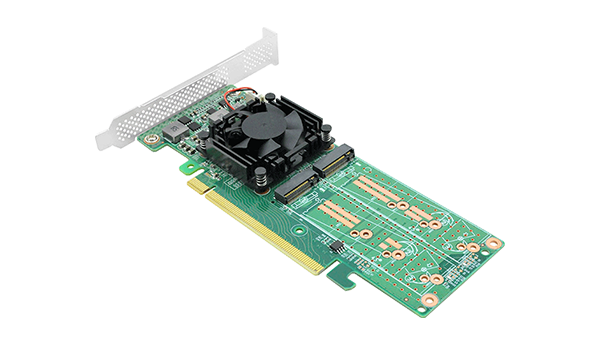

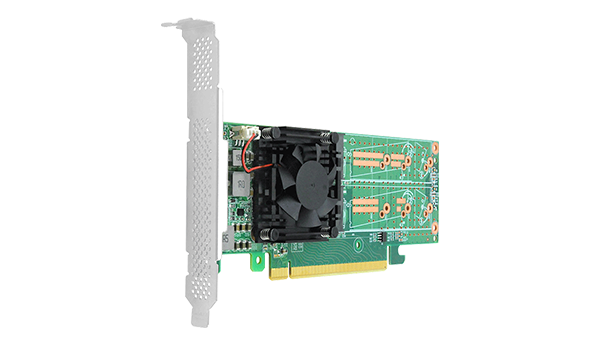

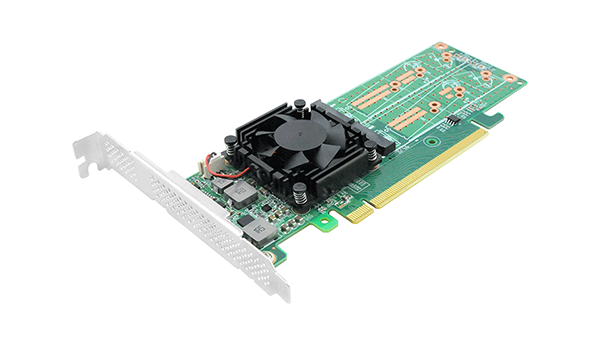

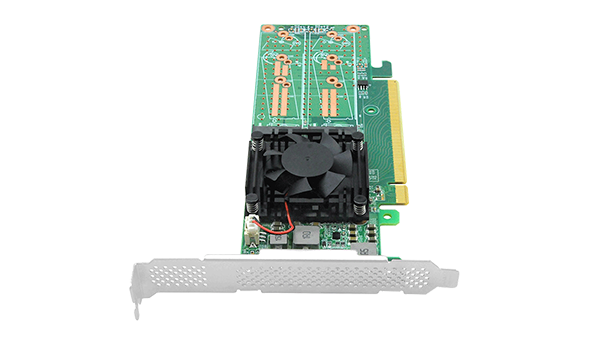

LRNV9547L-4I PCI Express x16 to Quad M.2 NVMe SSD Switch Adapter
Product Description
LRNV9547L-4I is a PCI Express x16 Gen3 PCIe switch Card provides dedicated PCIe 3.0 x4 (32Gb/s) bus bandwidth for each M.2 SSD, and unlocks the true performance potential of NVMe based storage configurations. Ideal for servers & high-end desktop/workstation platforms.
Expansion Solution PCIe3.0 to 2P M.2 NVMe Adapter: LRNV9541-2IR
Functional Characteristics
PLX PEX8747 Switch Controller has a PCIe 3.0 x16 upstream port as well as four PCIe 3.0 x4 downstream ports.
Dedicated PCIe 3.0 x16 bus bandwidth fully maximizes NVMe SSDs performance, And dedicated PCIe 3.0 x4 bandwidth for each NVMe M.2 SSD
This card does not rely on PCIe bifurcation supported by CPU or PCH
Independent, Stand Alone NVMe SSD Solution
Supports Windows 10 & Later, Windows 2016 Server, & Linux Kernel 3.3 & later
Supports Full-height Bracket and Low-Profile Bracket
Applications
Suitable for host-centric as well as peer-to-peer traffic patterns, the LRNV9547 can be configured for a variety of graphics applications.
Advantages
Suitable for small sized M.2 SSD support PCI Express, It can get the maximum bandwidth and transfer rate while the 4 M.2 SSD installed.
LR-LINK Expansion Solution: LRNV9F48
Complete technical details for integration and deployment planning.
| Model | LRNV9547L-4I |
|---|---|
| Number of Device | 4 Internal |
| I/O Controller | PEX8747 |
| Host Bus Type | PCI Express 3.0 x16 |
| Compatible Device Type | 4 NVMe M.2 SSD |
| Interface | 4*M.2 |
| Device Connectors | 4* M.2 Connectors |
|---|---|
| Host Connectors | PCIe x16 |
| OS supported list | Windows,Red Hat Linux,Cont0S,VMware ESXi;Ubuntu Linux, |
|---|
| Humidity | 15% – 90% |
|---|---|
| Operating Temperature | 5°C to 50°C (41°F to 122°F) |
| Storage Temperature | -25°C to 70°C (-13°F to 158°F) |
| Dimension | 67.9mm x175mm |
|---|---|
| Product Weight | 174g |
| Warranty | 2 Years |
|---|
| Included in Package | 1- PCI Express x16 to Quad NVMe M.2 SSD Switch Adapter |
|---|
