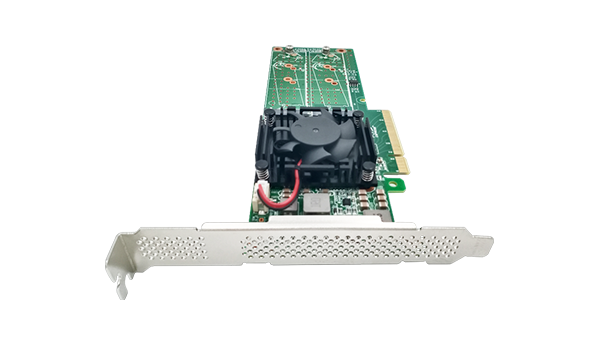

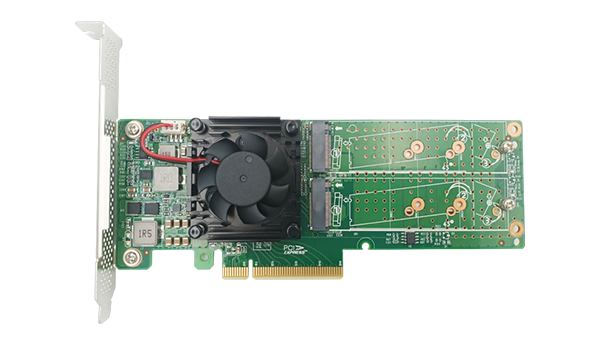

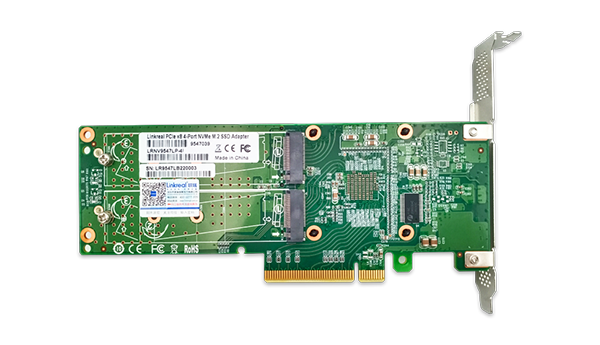

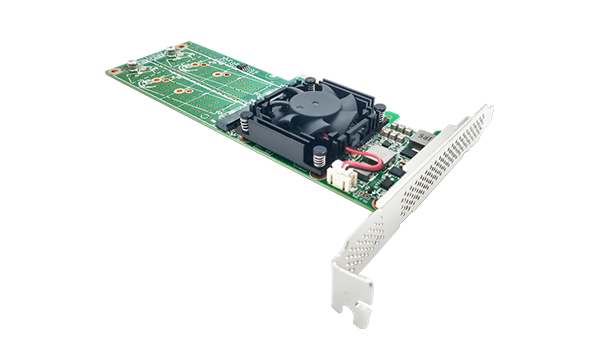

LRNV9547LP-4I PCI Express x 8 to Quad M.2 NVMe SSD Switch Adapter
Product Description
Compliant PCI Express Base Specification, r3.0 (compatible w/ PCIe r1.0a/1.1&2.0).
Compliant with PCI Power Management Spec, r1.2.
Microsoft Vista Compliant.
Supports Access Control Services.
High Performance. Non-blocking switch fabric, Full line rate on all ports.
This card does not rely on PCIe bifurcation supported by CPU or PCH
Independent, Stand Alone NVMe SSD Solution
Supports Windows 10 & Later, Windows 2016 Server, & Linux Kernel 3.3 & later
Supports Full-height Bracket and Low-Profile Bracket
LR-LINK PCI Express x16 to Quad M.2 NVMe SSD Switch Adapter: LRNV9547L-4I
Complete technical details for integration and deployment planning.
| Model | LRNV9547LP-4I |
|---|---|
| Number of Device | 4 Internal |
| I/O Controller | PEX8747 |
| Host Bus Type | PCI Express 3.0 x8 |
| Compatible Device Type | 4 NVMe M.2 SSD |
| Interface | 4*M.2 |
| Device Connectors | 4* M.2 Connectors |
|---|---|
| Host Connectors | PCIe x8 |
| OS supported list | Windows,Red Hat Linux,Cont0S,VMware ESXi;Ubuntu Linux, |
|---|
| Humidity | 15% – 90% |
|---|---|
| Operating Temperature | 5°C to 50°C (41°F to 122°F) |
| Storage Temperature | -25°C to 70°C (-13°F to 158°F) |
| Dimension | 67.9mm x200mm |
|---|---|
| Product Weight | 178g |
| Warranty | 2 Years |
|---|
| Included in Package | 1- PCI Express x8 to Quad NVMe M.2 SSD Switch Adapter |
|---|
