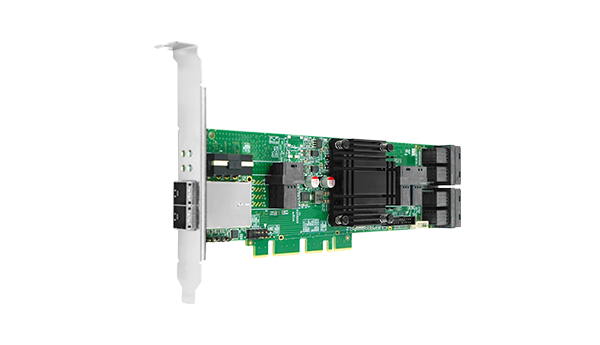

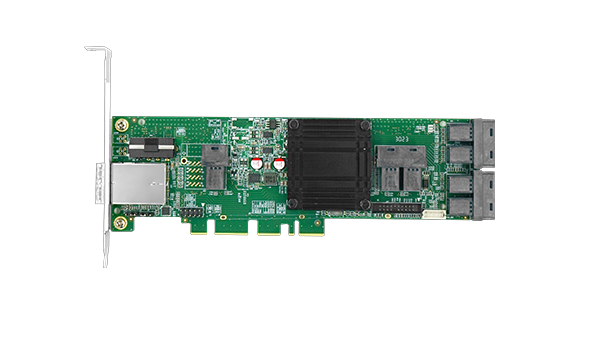

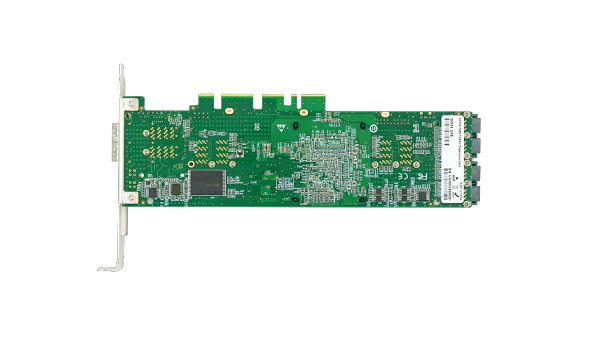

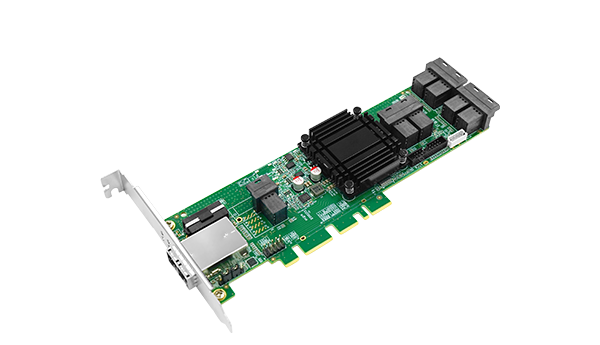

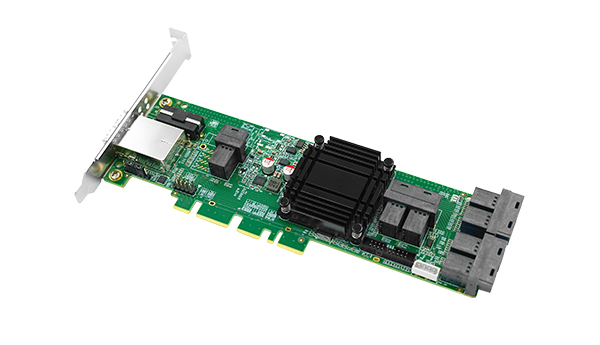

24-port 12G SAS Expansion Adapter
Developed on the high-performance SAS35X36 chip, the LRSACX36 -24IE delivers 12Gb/s SAS performance to hosts when used with 6Gb/s and 3Gb/s SATA end devices, making it ideal for high-capacity and other storage applications.The LRSACX36 -24IE is supported by industry-leading software development kits (SDKs) and tool suites for easy integration, error elimination and troubleshooting.
The LRSACX36 -24IE expansion card supports the scalability and fault-tolerant path redundancy required for today's data centers, enterprise servers and storage subsystems. When connecting multiple targets and hosts in a switched SAS environment, this expansion card does not have a CD installation and requires a PCIe Host Bus Expansion Adapter card or RAID card to be utilized in order to expand drives.
Complete technical details for integration and deployment planning.
Basic features | ||
Controller | SAS 35X36 | |
Compatible Device Type | Supports up to 24 SAS / SATA devices | |
Input Connector Type | 1 * Internal SFF-8643 | |
2 * External SFF-8644 | ||
Output Connector | 6 * Built-in SFF-8643 Mini SAS connector | |
Environment Features | ||
Operating Temperature | 0 °C to 50 °C (32 °F to 122 °F) | |
Storage Temperature | -10 °C to 65 °C (14 °F to149 °F) | |
Storage Humidity | Maximum: 90% non-condensing relative humidity at 35 ℃ | |
Certification | FCC, CE, RoHS | |
Physical Features | ||
PCB Size(L x W x H) | 66 x 204 x 1.6 mm | |
Package Size(L x W x H) | 222 x 147 x 28 mm | |
Weight(g) | 159.0 | |
Order Information | ||
P/N | Description | |
35X36-24IE | 24 Port SAS 12Gb/s Expansion Card (SAS 35X36 Based) | |
PS: Above details are only for reference, if there is any change,no prior notice. | ||
