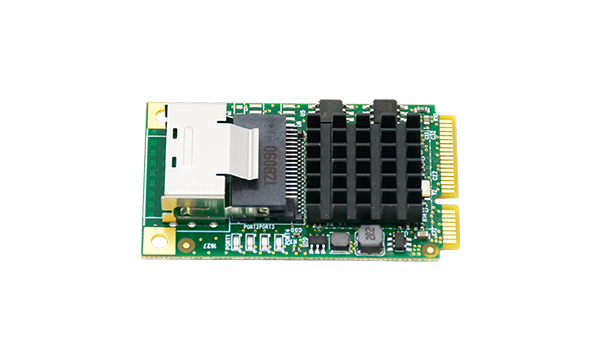

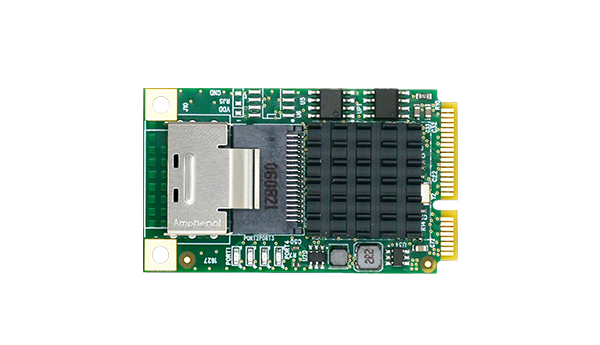

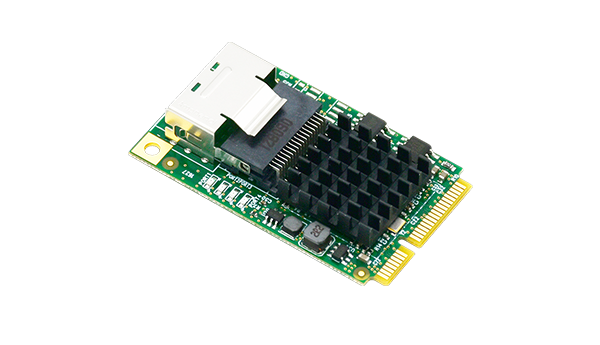

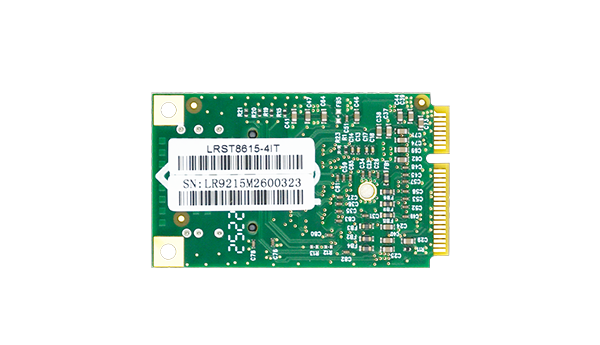

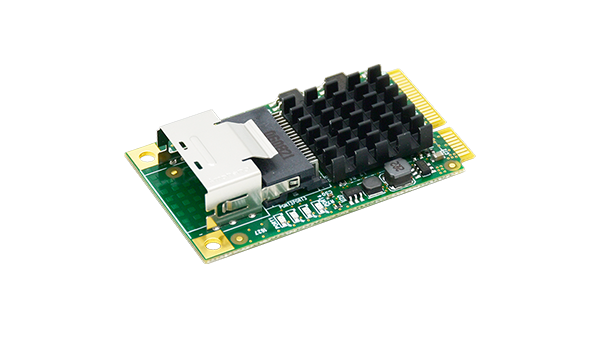

LRST8615-4IT 6Gb/s Mini PCIe to 4-Port SATA3 Expansion Card
LRST8615-4IT is 4-port SATA III (6 Gbps) to MINI PCI Express Host Card Via MINI PCIE loads 4 SATA drivers.
Compliant with Serial ATA Specification 3.1.
Supports communication speeds of 6 Gbps, 3 Gbps, and 1.5 Gbps.
Supports programmable transmitter signal levels.
Supports 4 SATA ports.
Supports AHCI 1.0 programming interface.
Supports Native Command Queuing (NCQ).
Supports Port Multiplier FIS based switching or command based switching.
Supports Partial and Slumber Power Management states.
Supports Staggered Spin-up.
Complete technical details for integration and deployment planning.
| Model | LRST8615-4IT |
|---|---|
| Number of Device | 4 internal |
| I/O Controller | Marvell 88SE9215 |
| Bus Type | Mini PCI Express V2.0 x1 |
| Compatible Device Types | 4 SATA SSD |
| Interface | 1*SFF-8087 |
| Device Connector | 1*SFF-8087 |
|---|---|
| Host Connector | Mini PCIe |
| Applicable Field | Server |
|---|---|
| Working Humidity | 5% – 95% |
| Storage Temperature | 0°C to 55°C (32°F to 131°F) |
| Power dissipation | <1W |
| PCI Express Voltage | 3.3v |
| System Support | Windows, Linux, Mac |
| Dimension | 30mm*51mm |
|---|---|
| Product Weight | 7g |
| Warranty | 2 Years |
|---|
| Shipping (Package)Weight | 3.0oz [86 g] |
|---|
| Included in Package | 1 - Mini PCI Express to SATA Expansion Card |
|---|
