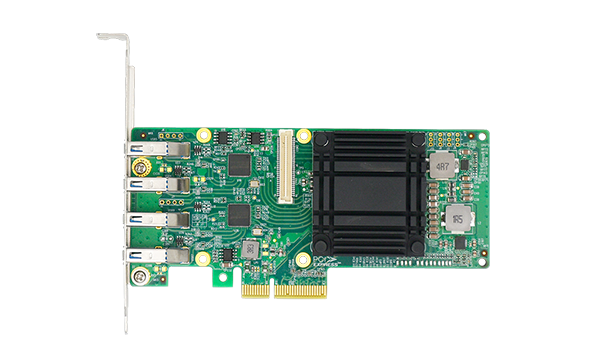

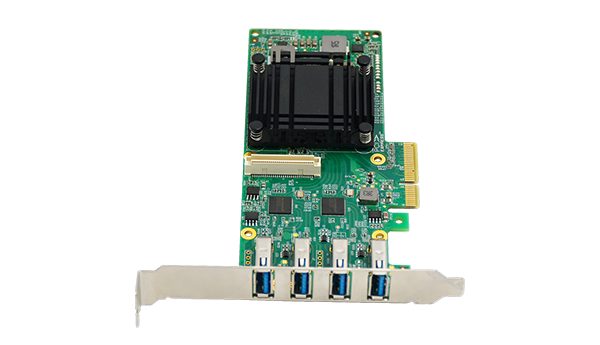

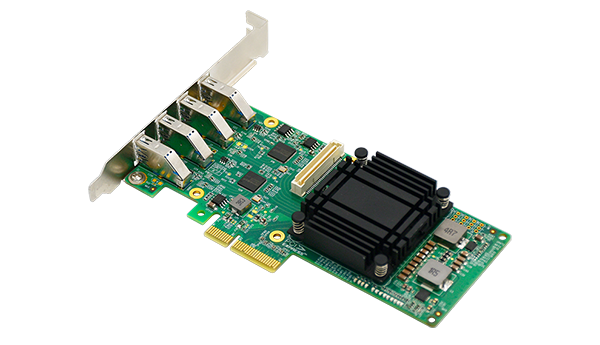

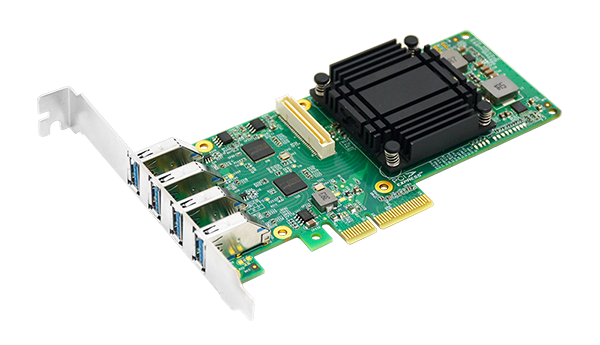

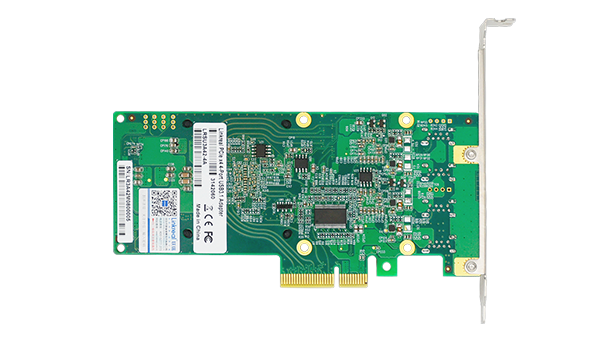

LRSU3A42-4A PCIe x4 to 4 Port USB 3.1 Expansion Card
LRSU3A42-4A is a 4-port USB3.1 host adapter specifically designed for industrial and vision applications. USB3.1 (10Gbps), delivers up to 2 times the data rate over USB 3.0 and is particularly useful for high-speed data storage and imaging devices. It has two independent ASM3142/ASM2142 USB3.1 Host Controllers and x4 PCI Express® Gen3 interface to offer up to 32 Gbps bandwidth for ASM3142/ASM2142. Four USB port devices are connected and working at the same time, which can provide up to 6 Gbps of actual effective bandwidth for each USB port.
In addition to transfer data bandwidth advantage, it features on-board regulated 5V DC power supply 1.5A current limit to supply stable 5V DC power to external USB devices.
Combining high bandwidth, industrial-grade power design and reliable cable connection, it brings convenience to interface USB3.0/USB3.1 devices operating under Windows system and Linux system.
Rock Series: LR-LINK PCIe2.0 x4 4P Type A 5Gb USB 3.0 Adapter LRSU9A72-4A(3U)
Functional Characteristics
• x4 PCI Express® Gen3 interface (4GB/s total bandwidth)
• On-board 5V DC regulated power supply, no external power needed
• 1.5A current limit
• Support most Windows and Linux system
• Compliant with
- Universal Serial Bus 3.1 specification Rev. 1.0
- Intel® xHCI specification Rev. 1.0
Host Interface
PCIe x4 channel, compatible with PCIe x8 and PCIe x16 slot
Skinny version adapter card(support 2U,3U metal case)
Operating System Support
Operating System:
Windows XP
Windows 7/8/8.1/10/Vista
Windows server2008/server2012 (win8/8.1/10/2012 free driver)
Complete technical details for integration and deployment planning.
| Model | LRSU3A42-4A |
|---|---|
| Number of Device | 4 internal |
| Bus Type | PCI Express 3.0 |
| I/O Controller | ASM3142/ASM2142 |
| Interface | USB 3.1 |
| Device Connector | USB Type-A |
|---|---|
| Host Bus | PCI Express x4 |
| Humidity | 5% ~ 95% |
|---|---|
| Operating Temperature | 0°C to 60°C (32°F - 140°F) |
| Storage Temperature | -20°C to 70°C (-4°F to 158°F) |
| Dimension | 145mm *68.9mm |
|---|---|
| Product Weight | 145.5g |
| Warranty | 2 Years |
|---|
| Shipping (Package)Weight | 6.83 oz [193.5 g] |
|---|
| Included in Package | 1 - PCI Express USB3.1 Type-A Expansion card |
|---|
